Product Details:
Payment & Shipping Terms:
|
| Bore Diameter: | 40mm | Outer Diameter: | 90mm |
|---|---|---|---|
| Width: | 23mm | Rings: | ZrO2 |
| Balls: | ZrO2 | Cage: | PTFE |
| Product: | 6308 Ceramic Ball Bearings | Feature: | Wear Resistance, Corrosion Resistance, High Speed, High Temperature , |
| High Light: | OD90mm Deep Groove Ball Bearing,6308 Deep Groove Ball Bearing |
||

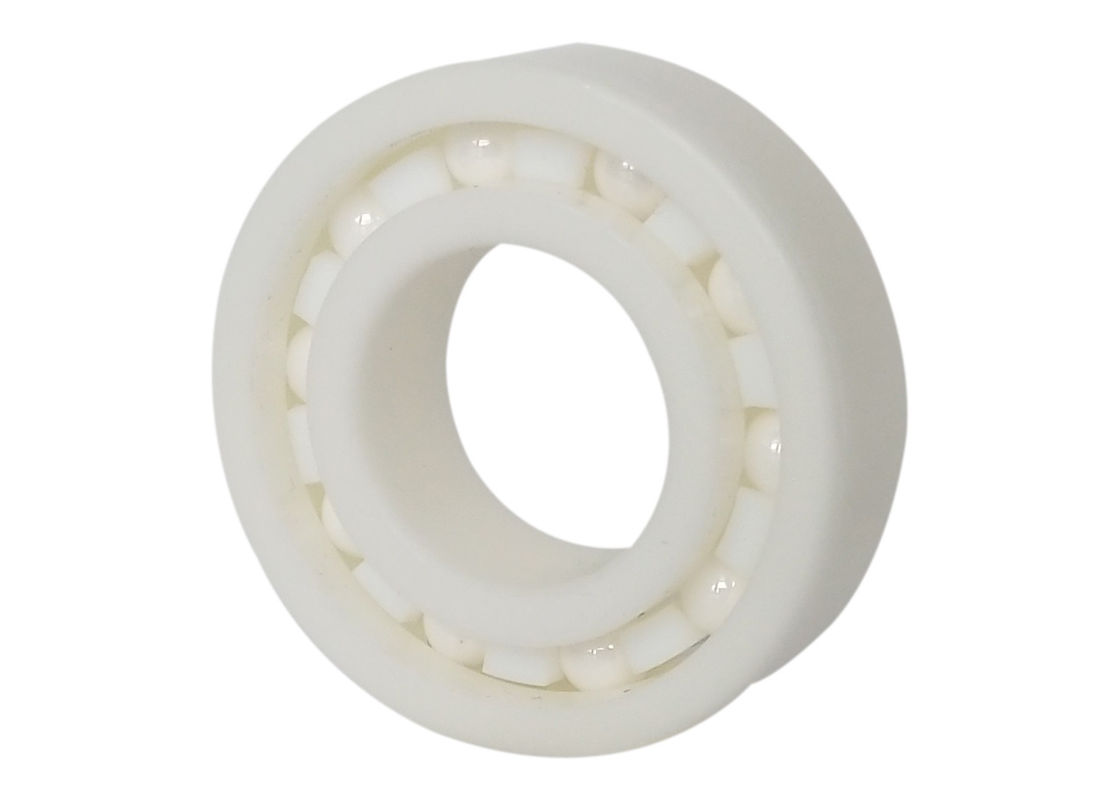

6308 ZrO2 Ceramic Deep Groove Ball Bearing High Temperature Resistance
Deep Groove Ball Bearing Detail:
Deep Groove Ball Bearings are the most common form of rolling bearings and are used in many types of applications; particularly those where high speeds and low power loss are required.Deep groove ball bearings can handle not only radial forces, but also moderate axial loads in both directions. They are easy to install and can be deployed in a variety of configurations.
Ceramic Bearings Dimension:
| Bearing Model |
Bore Diameter (d) |
Outer Diameter (D) |
Width (B) |
| 6308RS | 40 mm | 90 mm | 23 mm |
Ceramic Ball Bearings Feature:
| Chemical medium | Molecular formula | Contents | Temperature | Anti-corrosion property | |||||||
| AceticAcid | CH3COOH | 80% | Boiling | Excellent | |||||||
| Anhydrides | (CH3CO)2O | 50% ~ 80% | Boiling | Excellent | |||||||
| Water+Sodium chloride | H2O+NaCl | Boiling | Excellent | ||||||||
| carbonic acid | H₂CO₃ | Boiling | Excellent | ||||||||
| copper | CU | 1400℃ | Excellent | ||||||||
| food acid | Boiling | Excellent | |||||||||
| Juice acid | Boiling | Excellent | |||||||||
| hydrochloric acid | HCl | 35% | 25℃ | Good | |||||||
| hydrochloric acid+Ferric oxide | HCl+Fe2O3 | Boiling | Good | ||||||||
| Hydrofluoric Acid | HF | 25℃ | not resistant | ||||||||
| Nitric acid | HNO₃ | 83% | 25℃ | Excellent | |||||||
| Nitric acid+hydrochloric acid | HNO₃+HCl | 80%+20% | Boiling | Excellent | |||||||
| Phosphoric acid | H₃PO₄ | 85% | 25℃ | Excellent | |||||||
| Potassium hydroxide | KOH | 25℃ | Excellent | ||||||||
| Sodium Carbonate+Sulfuric acid | Na2CO3+H₂SO₄ | 18%/20% | 25℃ | Excellent | |||||||
| Sodium hydroxide | NaOH | 50% | Boiling | Excellent | |||||||
| Sulfuric acid | H₂SO₄ | 20% | 25℃ | Excellent | |||||||
| Sulfuric acid | H₂SO₄ | 80% | 50℃ | Good | |||||||
| Aluminum | AL | 100% | 700℃ | Excellent | |||||||
| hydrochloric acid | HCl | 35% | 25℃ | Good | |||||||
| hydrochloric acid+Ferric oxide | HCl+Fe2O3 | Boiling | Good | ||||||||
| Hydrofluoric Acid | HF | 25℃ | not resistant | ||||||||
| Zinc | ZN | 100% | 500℃ | Good | |||||||
ABEC 5 Ball Bearings Application:
