Precision ZrO2 51106 High Speed Ceramic Bearings

Precision ZrO2 51106 High Speed Ceramic Bearings
Precision ZrO2 51106 High Speed Ceramic Bearings Precision ZrO2 51106 High Speed Ceramic Bearings

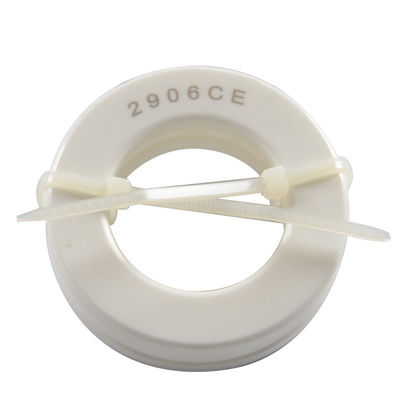

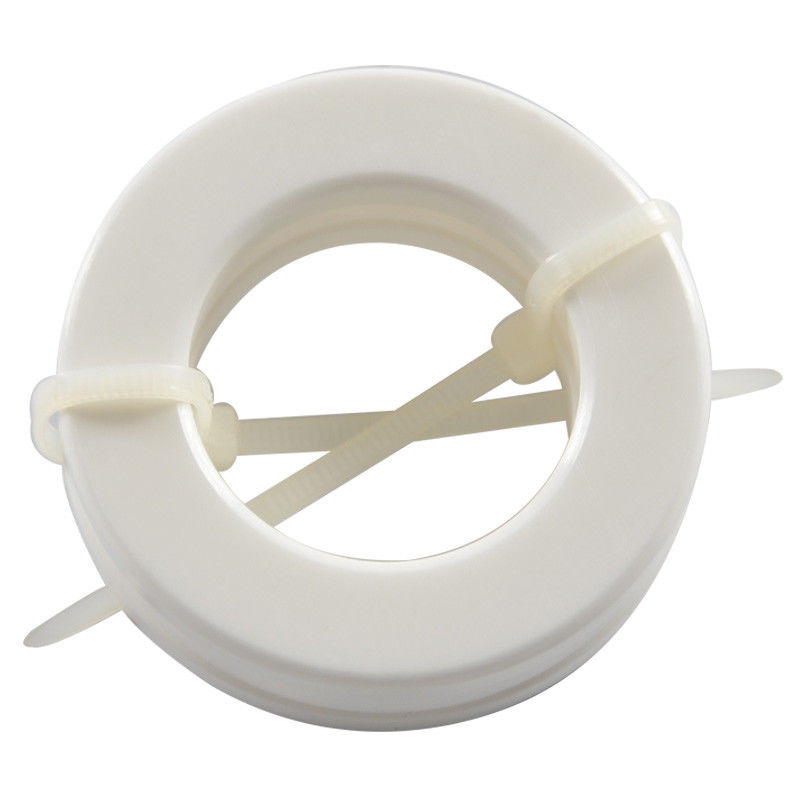

Large Image :  Precision ZrO2 51106 High Speed Ceramic Bearings

Product Details:
Place of Origin: China
Brand Name: WI-TECH
Model Number: 51106
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: 12USD--1000USD
Packaging Details: Carton
Delivery Time: 10-30 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100,000 pcs/month
Contact Now
Detailed Product Description
Type: High Precision Thrust Ceramic Ball Bearings Bore Size: 10-120mm
Precision Rating: P0 P6 P5 P4 P2, ABEC1 / 3/ 5/ 7/ 9 Number Of Row: Single Row
Rings: ZrO2 Ceramic Application: Vertical Pump, Vertical Centrifuge, Lifting Jack, Crane Hook, Low Speed Reducer
Outside Diameter: 24-155mm Package: Cartons, Plastic Bag
Lubrication: Self-lubricating Cage: PEFT, Nylon Cage,Stainless Steel Cage
Service: OEM Customized Services Feature: Long Life /High Speed/Smooth/low Noise
High Light:

51106 High Speed Ceramic Bearings

,

abec 9 self centering bearing

High Precision Thrust Ceramic Ball Bearings ZrO2 51106 White for Vertical Pump



Thrust ball bearing is a particular type of rotary ball bearing. Like other ball bearings, they permit rotation between parts, but they are designed to support a high axial load while doing this (parallel to the shaft). Higher speed applications require oil lubrication. Generally, they are composed of two washers (raceways) which may be grooved the rolling balls elements which are typically caged. As opposed to roller thrust bearings, ball thrust bearings can generally operate at higher speeds but at lower loads.



Full ceramic thrust bearing material: Both thrust washer and ball are ceramic material which including ZrO2, Si3N4 or SiC. Hybrid ceramic thrust bearing material: Thrust washer material can be chrome steel or stainless steel. Ball is ceramic which can be ZrO2, Si3N4 or SiC.



Inner diameter range of Ceramic thrust ball bearing from 3mm to 120mm, finished grinding raceway included. Production model have 511 series etc, various ceramic thrust bearing.



Specification of Thrust Ball Bearing
Bearing Model Bore Dia Outer Dia Width Dynamic Radial Static Radial Max Speed
(d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
51100 10 mm 24mm 9mm 9800 7000 15
51200 10 mm 26mm 11mm 11970 8820 12
51101 12 mm 26mm 9mm 10780 7210 14
51201 12 mm 28mm 11mm 13300 9100 12
51102 15 mm 28mm 9mm 11760 7350 12
51202 15 mm 32mm 12mm 17080 10920 11
51103 17 mm 30mm 9mm 12740 7560 12
51203 17 mm 35mm 12mm 19100 11970 11
51104 20 mm 35mm 21mm 18620 10430 11
51204 20 mm 40mm 14mm 26390 15470 9
51105 25 mm 42mm 11mm 21280 10710 9
51205 25 mm 47mm 15mm 35350 19460 8
51305 25 mm 52mm 18mm 43050 24780 6
51405 25 mm 60mm 24mm 62580 38500 6
51106 30 mm 47mm 11mm 27930 13020 9
51206 30 mm 52mm 16mm 38010 19670 8
51306 30 mm 60mm 21mm 55090 29540 6
51406m 30 mm 70mm 28mm 79100 47110 5
51107 35 mm 52mm 12mm 31080 13370 8
51207 35 mm 62mm 18mm 54740 27160 6
51307 35 mm 68mm 24mm 73500 38780 5
51407 35 mm 80mm 32mm 108500 60410 5
51407m 35 mm 80mm 32mm 98000 56350 5
51108 40 mm 60mm 13mm 44030 18760 8
51208 40 mm 68mm 19mm 68810 32830 6
51308 40 mm 78mm 26mm 94500 47880 5
51408m 40 mm 90mm 36mm 129500 73500 3
51109 45 mm 65mm 14mm 48440 19040 8
51109m 45 mm 65mm 14mm 39620 16660 8
51209 45 mm 73mm 20mm 78400 34510 6
51309 45 mm 85mm 28mm 114800 55230 5
51409 45 mm 100mm 39mm 183400 98000 3
51409m 45 mm 100mm 39mm 165200 91700 3
51110 50 mm 70mm 14mm 52850 19670 6
51210 50 mm 78mm 22mm 90300 39410 5
51310 50 mm 95mm 31mm 141400 66710 5
51410m 50 mm 110mm 43mm 191800 103600 3
51111 55 mm 78mm 16mm 57050 21770 6
51211 55 mm 90mm 25mm 111300 48160 5
51311 55 mm 105mm 35mm 172200 82600 3
51311m 55 mm 105mm 35mm 158200 77700 3
51411m 55 mm 120mm 48mm 250600 134400 3
51112 60 mm 85mm 17mm 69020 26530 6
51212 60 mm 95mm 26mm 198300 49280 5
51212m 60 mm 95mm 26mm 111300 47320 5
51312 60 mm 110mm 35mm 186900 86100 3
51312m 60 mm 110mm 35mm 172200 81200 3
51412 60 mm 130mm 51mm 314300 155400 3
51412m 60 mm 130mm 51mm 282800 144200 3
51113 65 mm 90mm 18mm 75600 27440 5
51213 65 mm 100mm 27mm 133700 54950 5
51313 65 mm 115mm 36mm 200900 88900 3
51313m 65 mm 115mm 36mm 186900 84700 3
51413 65 mm 140mm 56mm 345800 161700 3
51413m 65 mm 140mm 56mm 314300 151900 3
51114 70 mm 95mm 18mm 79100 27510 5
51214 70 mm 105mm 27mm 132300 50960 5
51314 70 mm 125mm 40mm 238700 107100 3
51314m 70 mm 125mm 40mm 　 　 　
51414 70 mm 150mm 60mm 387100 172900 2
51414m 70 mm 150mm 60mm 352100 162400 2
51115 75 mm 100mm 19mm 98000 33040 5
51215 75 mm 110mm 27mm 139300 51590 3
51315 75 mm 135mm 44mm 298200 128800 3
51315m 75 mm 135mm 44mm 277200 122500 3
51415m 75 mm 160mm 65mm 479500 208600 2
51116 80 mm 105mm 19mm 101500 33950 5
51216m 80 mm 115mm 28mm 139300 515900 3
51316m 80 mm 140mm 44mm 277200 120400 3
51316 80 mm 140mm 44mm 298200 126700 3
51416 80 mm 170mm 68mm 525700 219800 2
51416m 80 mm 170mm 68mm 525700 219800 2
51117 85 mm 110mm 19mm 105700 33600 5
51217 85 mm 125mm 31mm 184800 65870 3
51217m 85 mm 125mm 31mm 167300 61600 3
51317 85 mm 150mm 49mm 501200 203000 3
51417m 85 mm 180mm 72mm 599900 244300 2
51118 90 mm 120mm 22mm 133000 43610 5
51118m 90 mm 120mm 22mm 223300 85400 3
51218 90 mm 135mm 35mm 236600 88900 3
51218m 90 mm 135mm 35mm 223300 85400 3
51318m 90 mm 155mm 50mm 342300 141400 3
51418m 90 mm 190mm 77mm 661500 264600 2
51120m 100 mm 135mm 25mm 167300 53970 3
51120 100 mm 135mm 25mm 173600 55510 3
51220 100 mm 150mm 38mm 281400 104300 3
51220m 100 mm 150mm 38mm 266000 100100 3
51320 100 mm 170mm 55mm 439600 172900 1.5
51320m 100 mm 170mm 55mm 439600 172900 1.5
51420m 100 mm 210mm 85mm 851900 311500 1.5
51122 110 mm 145mm 25mm 194600 57820 3
51122m 110 mm 145mm 25mm 187600 56420 3
51222 110 mm 160mm 38mm 312900 109200 3
51222m 110 mm 160mm 38mm 297500 105700 3
51322 110 mm 190mm 63mm 608300 223300 1.5
51322m 110 mm 190mm 63mm 564900 212800 1.5
51422m 110 mm 230mm 95mm 977900 343700 1.5
51124 120 mm 155mm 25mm 201600 59150 3
51124m 120 mm 155mm 25mm 201600 59150 3
51224 120 mm 170mm 39mm 356300 119000 3
51224m 120 mm 170mm 39mm 339500 115500 3
51324m 120 mm 210mm 70mm 683900 242900 1.5
51424m 120 mm 250mm 102mm 1113000 371700 1.5
51126 130 mm 170mm 30mm 274400 81900 3
51126m 130 mm 170mm 30mm 264600 79800 3
51225 130 mm 190mm 45mm 457100 154000 1.5
51226m 130 mm 190mm 45mm 434000 148400 1.5
51326m 130 mm 225mm 75mm 813400 274400 1.5
51426m 130 mm 270mm 110mm 1408400 443100 1.5
51128m 140 mm 180mm 31mm 274400 79100 3
51228m 140 mm 200mm 46mm 457100 150500 1.5
51328m 140 mm 240mm 80mm 954800 306600 1.5
51428m 140 mm 280mm 112mm 1408400 438200 1.5
51130m 150 mm 190mm 31mm 294000 79800 3
51230m 150 mm 215mm 50mm 556500 179900 1.5
51330m 150 mm 250mm 80mm 954800 302400 1.5
51430 150 mm 300mm 120mm 1569400 467600 1.5
51132m 160 mm 200mm 31mm 313600 83300 3
51232m 160 mm 225mm 51mm 556500 179900 1.5
51332m 160 mm 270mm 87mm 1107400 335300 1.5
51134m 170 mm 215mm 34mm 394800 107100 3
51234m 170 mm 240mm 55mm 676200 205800 1.5
51334m 170 mm 280mm 87mm 1192800 347200 1.5
51136m 180 mm 225mm 34mm 407400 105700 3
51236m 180 mm 250mm 56mm 709800 212800 1.5
51336m 180 mm 300mm 95mm 1369200 382200 1.5
51138m 190 mm 240mm 37mm 469700 121100 1.5
51238m 190 mm 270mm 62mm 869400 245700 1.5
51140m 200 mm 250mm 37mm 500500 126700 1.5
51240m 200 mm 280mm 62mm 912800 253400 1.5
51340m 200 mm 340mm 110mm 1689800 459200 1.5





Precision ZrO2 51106 High Speed Ceramic Bearings 0

Precision ZrO2 51106 High Speed Ceramic Bearings 1
