Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ceramic Ball Bearings | Type: | Ball Bearing |
|---|---|---|---|
| Structure: | Deep Groove Ball Bearing | Rings: | ZrO2 |
| Balls: | ZrO2 | Cage: | PTFE, PEEK, Nylon |
| Bore Size: | 3 - 120 Mm | Precision Rating: | P0 P6 P5 P4 P2, ABEC1，3，5，7 |
| Number Of Row: | Single Row | Seals Type: | Open Or Sealed |
| Outside Diameter: | 10 - 700 Mm | Service: | OEM/ODM |
| Application: | Machinery,Engine,Finger Spinner/Medical Devices/Skateboard | Lubrication: | No Grease |
| Feature: | Long Life High Speed,low Noise,Long Life .durable,High Precision | Package: | Cartons Plastic Tube |
| Clearance: | C2 C0 C3 C4 C5 | Size: | 10*30*9mm ~ 25*52*15mm |
| Sample: | Available | Delivery: | Air Express, Ocean Shipping |
| High Light: | ZrO2 ceramic bike bearings,6805 ceramic bike bearings |
||

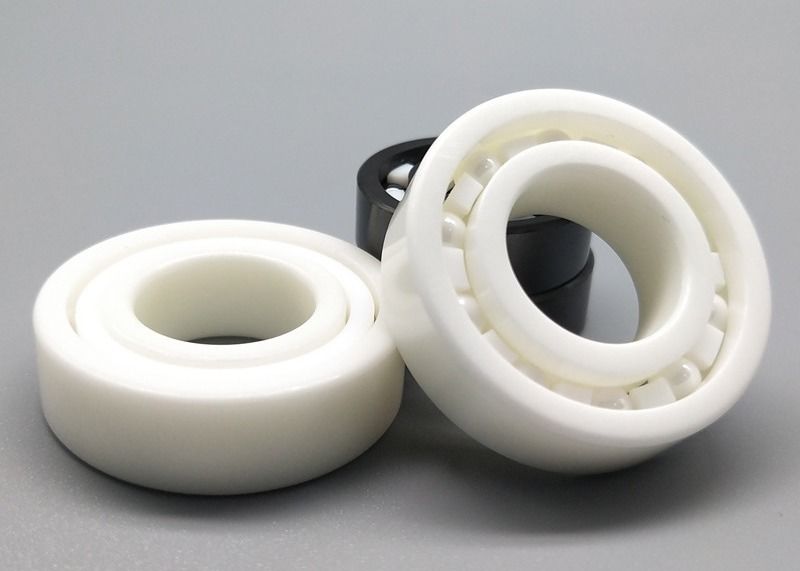

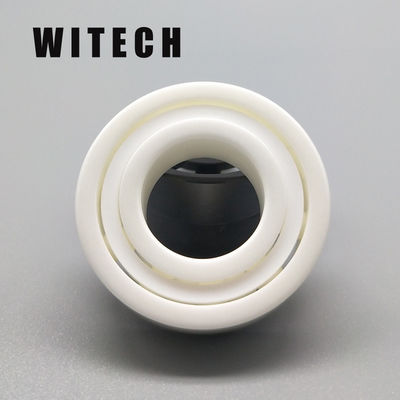

No Noise Ceramic Bearings, CE6805 ZrO2 Ceramic Bearings Bike
Ceramic bearings are comprised of ceramic rolling elements (balls) enclosed in a ferrous
(typically steel) inner and outer race. Since these bearings are constructed from many
materials, they often operate in hybrid capacities. We also build ceramic bearings (i.e.,
bearings with ceramic races), but they are not as common because they are less durable.
Reduced rolling resistance mainly results from the ceramic balls’ increased smoothness,
dimensional stability, and increased uniformity over steel ball bearings. These properties
ensure that applied loads are uniformly distributed over all rolling elements. Additionally,
ceramic materials have a significantly lower coefficient of friction (~20–30 times less) than
steel ball bearings with standard seals and lubrication. This reduced friction results in
reduced rolling resistance and faster rotational speeds.
ZrO2 CERAMIC DEEP GROOVE BALL BEARING CE6805
| Specification of Deep Groove Ball Bearing ZrO2 /Si3N4 /SiC /Al2O3 /POM | ||||||
| Bearing Model | Bore Dia | Outer Dia | Width | Dynamic Radial | Static Radial | Max Speed |
| (d) | (D) | (B) | (Newtons) | (Newtons) | (X1000 RPM) | |
| 602 | 2 mm | 7mm | 2.8mm | 98.4 | 30.9 | 42.6 |
| 603 | 3 mm | 9mm | 3mm | 69 | 45.3 | 40.2 |
| 604 | 4 mm | 12mm | 4mm | 244.2 | 84 | 33.6 |
| 605 | 5 mm | 14mm | 5mm | 339 | 121.8 | 30 |
| 606 | 6 mm | 17mm | 6mm | 577.2 | 203.1 | 27 |
| 607 | 7 mm | 19mm | 6mm | 595.8 | 215.1 | 25.8 |
| 608 | 8mm | 22mm | 7mm | 839.7 | 330.9 | 24 |
| 609 | 9mm | 24mm | 7mm | 855.9 | 346.5 | 22.8 |
| 6000 | 10 mm | 26mm | 8mm | 1365 | 585 | 21.6 |
| 6001 | 12 mm | 28mm | 8mm | 1530 | 720 | 19.2 |
| 6002 | 15 mm | 32mm | 9mm | 1680 | 855 | 16.2 |
| 6003 | 17 mm | 35mm | 10mm | 1800 | 975 | 15 |
| 6004 | 20 mm | 42mm | 12mm | 2820 | 1515 | 12.6 |
| 6005 | 25 mm | 47mm | 12mm | 3030 | 1755 | 10.8 |
| 6006 | 30 mm | 55mm | 13mm | 3960 | 2475 | 9 |
| 6007 | 35 mm | 62mm | 14mm | 4770 | 3090 | 7.8 |
| 6008 | 40 mm | 68mm | 15mm | 5010 | 3450 | 7.2 |
| 6009 | 45 mm | 75mm | 16mm | 6300 | 4530 | 6.6 |
| 6010 | 50 mm | 80mm | 16mm | 6540 | 4980 | 5.94 |
| 6011 | 55 mm | 90mm | 18mm | 8490 | 6360 | 5.4 |
| 6012 | 60 mm | 95mm | 18mm | 8820 | 6960 | 5.1 |
| 6013 | 65 mm | 100mm | 18mm | 9150 | 7560 | 4.8 |
| 6014 | 70 mm | 110mm | 20mm | 11430 | 9270 | 4.26 |
| 6015 | 75 mm | 115mm | 20mm | 11880 | 10050 | 4.02 |
| 6016 | 80 mm | 125mm | 22mm | 14280 | 11940 | 3.78 |
| 6017 | 85 mm | 130mm | 22mm | 14850 | 12930 | 3.6 |
| 6018 | 90 mm | 140mm | 24mm | 17460 | 14910 | 3.36 |
| 6019 | 95 mm | 145mm | 24mm | 18120 | 16170 | 3.18 |
| 6020 | 100 mm | 150mm | 24mm | 18060 | 16260 | 3.18 |
| 6021 | 105 mm | 160mm | 26mm | 21690 | 19740 | 2.88 |
