|Bore Diameter:||20mm||Outer Diameter:||52mm|
|Width:||15mm||Rings:||AISI440C / SUS304 / SUS316|
|Rollers:||Si3N4 / SiC/ ZrO2||Cage:||SUS316 / PTFE|
|Product:||1304 Hybrid Ceramic Bearing||Feature:||Wear Resistance, Corrosion Resistance, Grease-free, Self-lubrication|
PTFE Hybrid Ceramic Ball Bearings,
Chemical Equipment Self Aligning Roller Bearing,
15mm Width Self Aligning Roller Bearing

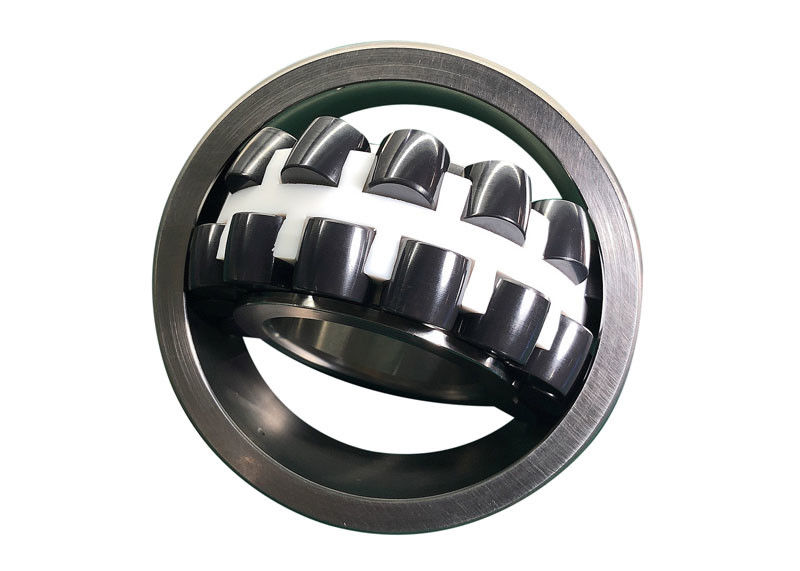

1304 Low Vibration and Noise Hybrid Ceramic Roller Bearing, Self Aligning Roller Bearing for Chemical Equipment
Hybrid Ceramic Bearing Detail:
The hybrid ceramic roller bearings have stainless steel rings and ceramic rollerss. The rings are made from AISI440C, 304 or 316 stainless steel. The ceramic rollers are made from ZrO2, Si3N4 or Sic. We can also offer our hybrid ceramic bearings with PEEK or 316 stainless steel cages.
The hybrid ceramic bearing rollerss has the advantage as below:
Ceramic self-aligning bearings have a relatively high radial load capacity and are generally suitable for those with heavy loads and impact loads. When the shaft and outer casing are deflected, it can be automatically adjusted without increasing the bearing load. At the same time compensate for different degrees of error.
The raceway of the ceramic self-aligning bearing is spherical, and its center of curvature is consistent with the center of the bearing. So the inner race, the ball, and the cage can rotate in the center of the bearing. Because of its small contact angle, the corresponding axial load capacity is also relatively small. The shaft and housing center are more suitable.
Ceramic Bearing Dimension:
Bore Diameter (d)
Outer Diameter (D)
|1304HC||20 mm||52 mm||15 mm|
Ceramic Roller Bearings Feature:
ABEC 3 Self Aligning Bearing Application:
