Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hybrid Ceramic Ball Bearings | Type: | Ball Bearing |
|---|---|---|---|
| Structure: | Deep Groove Ball Bearing | Rings: | Si3N4 |
| Balls: | Si3N4 | Cage: | PTFE, PEEK, Nylon |
| Bore Size: | 3 - 120 Mm | Precision Rating: | P0 P6 P5 P4 P2, ABEC1，3，5，7 |
| Number Of Row: | Single Row | Seals Type: | Open Or Sealed |
| Outside Diameter: | 10 - 700 Mm | Service: | OEM/ODM |
| Application: | Machinery,Engine,Finger Spinner/Medical Devices/Skateboard | Lubrication: | No Grease |
| Feature: | Long Life High Speed,low Noise,Long Life .durable,High Precision | Package: | Cartons Plastic Tube |
| Clearance: | C2 C0 C3 C4 C5 | Size: | 10*30*9mm ~ 25*52*15mm |
| Sample: | Available | Delivery: | Air Express, Ocean Shipping |
| High Light: | 6811 Hybrid Ceramic Bearings,Deep Groove Hybrid Ceramic Bearings |
||

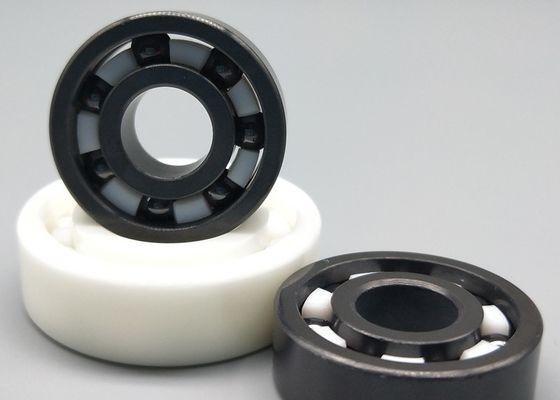

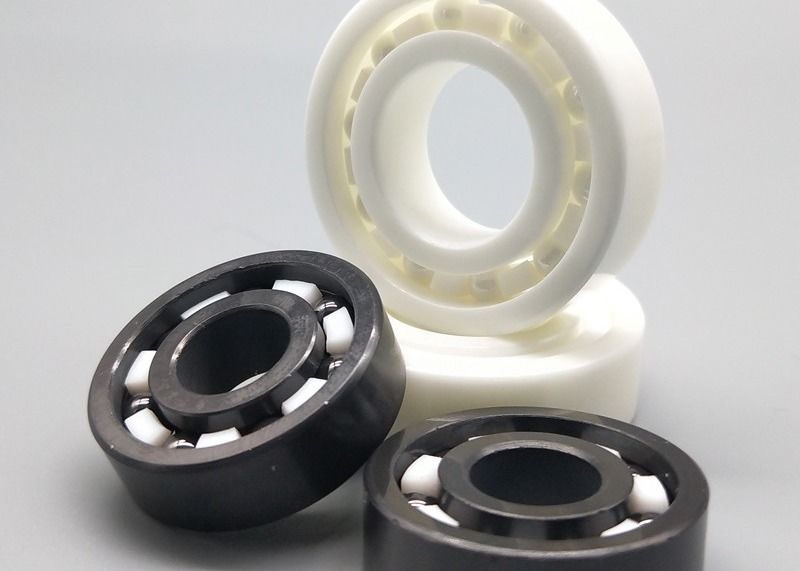

High Precision Hybrid Ceramic Bearings, CE6811 Si3n4 Ceramic Ball Bearings
Ceramic bearings are comprised of ceramic rolling elements (balls) enclosed in a ferrous (typically steel)
inner and outer race. Since these bearings are constructed from many materials, they often operate in
hybrid capacities. We also build ceramic bearings (i.e., bearings with ceramic races), but they are not as
common because they are less durable.
Some additional applications of ceramic bearings include:
Si3N4 Hybrid CERAMIC DEEP GROOVE BALL BEARING CE61811
| Specification of Deep Groove Ball Bearing ZrO2 /Si3N4 /SiC /Al2O3 /POM | ||||||
| Bearing Model | Bore Dia | Outer Dia | Width | Dynamic Radial | Static Radial | Max Speed |
| (d) | (D) | (B) | (Newtons) | (Newtons) | (X1000 RPM) | |
| 602 | 2 mm | 7mm | 2.8mm | 98.4 | 30.9 | 42.6 |
| 603 | 3 mm | 9mm | 3mm | 69 | 45.3 | 40.2 |
| 604 | 4 mm | 12mm | 4mm | 244.2 | 84 | 33.6 |
| 605 | 5 mm | 14mm | 5mm | 339 | 121.8 | 30 |
| 606 | 6 mm | 17mm | 6mm | 577.2 | 203.1 | 27 |
| 607 | 7 mm | 19mm | 6mm | 595.8 | 215.1 | 25.8 |
| 608 | 8mm | 22mm | 7mm | 839.7 | 330.9 | 24 |
| 609 | 9mm | 24mm | 7mm | 855.9 | 346.5 | 22.8 |
| 6000 | 10 mm | 26mm | 8mm | 1365 | 585 | 21.6 |
| 6001 | 12 mm | 28mm | 8mm | 1530 | 720 | 19.2 |
| 6002 | 15 mm | 32mm | 9mm | 1680 | 855 | 16.2 |
| 6003 | 17 mm | 35mm | 10mm | 1800 | 975 | 15 |
| 6004 | 20 mm | 42mm | 12mm | 2820 | 1515 | 12.6 |
| 6005 | 25 mm | 47mm | 12mm | 3030 | 1755 | 10.8 |
| 6006 | 30 mm | 55mm | 13mm | 3960 | 2475 | 9 |
| 6007 | 35 mm | 62mm | 14mm | 4770 | 3090 | 7.8 |
| 6008 | 40 mm | 68mm | 15mm | 5010 | 3450 | 7.2 |
| 6009 | 45 mm | 75mm | 16mm | 6300 | 4530 | 6.6 |
| 6010 | 50 mm | 80mm | 16mm | 6540 | 4980 | 5.94 |
| 6011 | 55 mm | 90mm | 18mm | 8490 | 6360 | 5.4 |
| 6012 | 60 mm | 95mm | 18mm | 8820 | 6960 | 5.1 |
| 6013 | 65 mm | 100mm | 18mm | 9150 | 7560 | 4.8 |
| 6014 | 70 mm | 110mm | 20mm | 11430 | 9270 | 4.26 |
| 6015 | 75 mm | 115mm | 20mm | 11880 | 10050 | 4.02 |
| 6016 | 80 mm | 125mm | 22mm | 14280 | 11940 | 3.78 |
| 6017 | 85 mm | 130mm | 22mm | 14850 | 12930 | 3.6 |
| 6018 | 90 mm | 140mm | 24mm | 17460 | 14910 | 3.36 |
| 6019 | 95 mm | 145mm | 24mm | 18120 | 16170 | 3.18 |
| 6020 | 100 mm | 150mm | 24mm | 18060 | 16260 | 3.18 |
| 6021 | 105 mm | 160mm | 26mm | 21690 | 19740 | 2.88 |
