Product Details:
Payment & Shipping Terms:
|
Product Name: | Hybrid Ceramic Ball Bearings | Type: | Ball Bearing |
---|---|---|---|
Structure: | Deep Groove Ball Bearing | Rings: | Si3N4 |
Balls: | Si3N4 | Cage: | PTFE, PEEK, Nylon |
Bore Size: | 3 - 120 Mm | Precision Rating: | P0 P6 P5 P4 P2, ABEC1,3,5,7 |
Number Of Row: | Single Row | Seals Type: | Open Or Sealed |
Outside Diameter: | 10 - 700 Mm | Service: | OEM/ODM |
Application: | Machinery,Engine,Finger Spinner/Medical Devices/Skateboard | Lubrication: | No Grease |
Feature: | Long Life High Speed,low Noise,Long Life .durable,High Precision | Package: | Cartons Plastic Tube |
Clearance: | C2 C0 C3 C4 C5 | Size: | 10*30*9mm ~ 25*52*15mm |
Sample: | Available | Delivery: | Air Express, Ocean Shipping |
High Light: | 6011 Si3N4 Ceramic Ball Bearings,Hybrid Ceramic Ball Bearings |

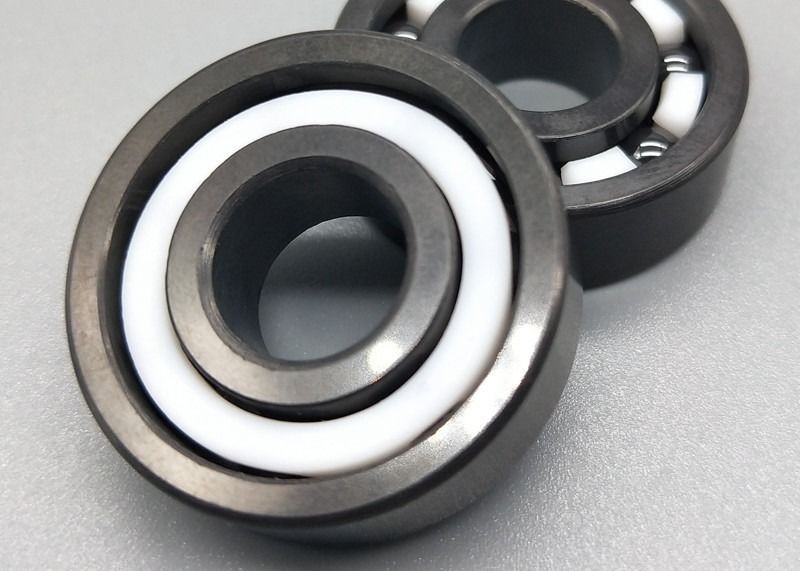

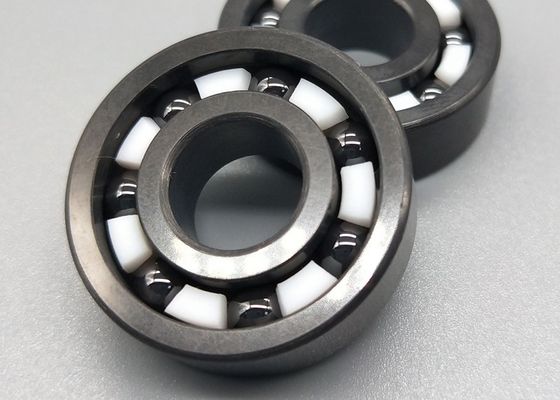

High Precision Hybrid Ceramic Bearings, CE6011 Si3N4 Ceramic Ball Bearings
We construct the rolling elements in ceramic bearings using several ceramic materials, including
• Silicon nitride (Si3N4)
• Aluminum oxide (Al2O3)
• Zirconium oxide (ZrO2)
• Silicon carbide (SiC)
Benefits of Ceramic Bearings
Manufacturers prize ceramic bearings because of their speed advantage over their steel counterparts.
This benefit stems from their four main characteristics:
• Reduced rolling resistance
• Reduced weight
• Increased durability
• Increased stiffness
ZrO2 Hybrid CERAMIC DEEP GROOVE BALL BEARING CE6010
Specification of Deep Groove Ball Bearing ZrO2 /Si3N4 /SiC /Al2O3 /POM | ||||||
Bearing Model | Bore Dia | Outer Dia | Width | Dynamic Radial | Static Radial | Max Speed |
(d) | (D) | (B) | (Newtons) | (Newtons) | (X1000 RPM) | |
602 | 2 mm | 7mm | 2.8mm | 98.4 | 30.9 | 42.6 |
603 | 3 mm | 9mm | 3mm | 69 | 45.3 | 40.2 |
604 | 4 mm | 12mm | 4mm | 244.2 | 84 | 33.6 |
605 | 5 mm | 14mm | 5mm | 339 | 121.8 | 30 |
606 | 6 mm | 17mm | 6mm | 577.2 | 203.1 | 27 |
607 | 7 mm | 19mm | 6mm | 595.8 | 215.1 | 25.8 |
608 | 8mm | 22mm | 7mm | 839.7 | 330.9 | 24 |
609 | 9mm | 24mm | 7mm | 855.9 | 346.5 | 22.8 |
6000 | 10 mm | 26mm | 8mm | 1365 | 585 | 21.6 |
6001 | 12 mm | 28mm | 8mm | 1530 | 720 | 19.2 |
6002 | 15 mm | 32mm | 9mm | 1680 | 855 | 16.2 |
6003 | 17 mm | 35mm | 10mm | 1800 | 975 | 15 |
6004 | 20 mm | 42mm | 12mm | 2820 | 1515 | 12.6 |
6005 | 25 mm | 47mm | 12mm | 3030 | 1755 | 10.8 |
6006 | 30 mm | 55mm | 13mm | 3960 | 2475 | 9 |
6007 | 35 mm | 62mm | 14mm | 4770 | 3090 | 7.8 |
6008 | 40 mm | 68mm | 15mm | 5010 | 3450 | 7.2 |
6009 | 45 mm | 75mm | 16mm | 6300 | 4530 | 6.6 |
6010 | 50 mm | 80mm | 16mm | 6540 | 4980 | 5.94 |
6011 | 55 mm | 90mm | 18mm | 8490 | 6360 | 5.4 |
6012 | 60 mm | 95mm | 18mm | 8820 | 6960 | 5.1 |
6013 | 65 mm | 100mm | 18mm | 9150 | 7560 | 4.8 |
6014 | 70 mm | 110mm | 20mm | 11430 | 9270 | 4.26 |
6015 | 75 mm | 115mm | 20mm | 11880 | 10050 | 4.02 |
6016 | 80 mm | 125mm | 22mm | 14280 | 11940 | 3.78 |
6017 | 85 mm | 130mm | 22mm | 14850 | 12930 | 3.6 |
6018 | 90 mm | 140mm | 24mm | 17460 | 14910 | 3.36 |
6019 | 95 mm | 145mm | 24mm | 18120 | 16170 | 3.18 |
6020 | 100 mm | 150mm | 24mm | 18060 | 16260 | 3.18 |
6021 | 105 mm | 160mm | 26mm | 21690 | 19740 | 2.88 |
