Product Details:
Payment & Shipping Terms:
|
| Product Name: | Full Ceramic Ball Bearings | Type: | Ball Bearing |
|---|---|---|---|
| Structure: | Deep Groove Ball Bearing | Rings: | ZrO2 |
| Balls: | ZrO2 | Cage: | PTFE, PEEK, Nylon |
| Bore Size: | 3 - 120 Mm | Precision Rating: | P0 P6 P5 P4 P2, ABEC1，3，5，7 |
| Number Of Row: | Single Row | Seals Type: | Open Or Sealed |
| Outside Diameter: | 10 - 700 Mm | Service: | OEM/ODM |
| Application: | Machinery,Engine,Finger Spinner/Medical Devices/Skateboard | Lubrication: | No Grease |
| Feature: | Long Life High Speed,low Noise,Long Life .durable,High Precision | Package: | Cartons Plastic Tube |
| Clearance: | C2 C0 C3 C4 C5 | Size: | 10*30*9mm ~ 25*52*15mm |
| Sample: | Available | Delivery: | Air Express, Ocean Shipping |
| High Light: | Single Row ZrO2 Full Ceramic Bearings,6009 Full Ceramic Bearings |
||

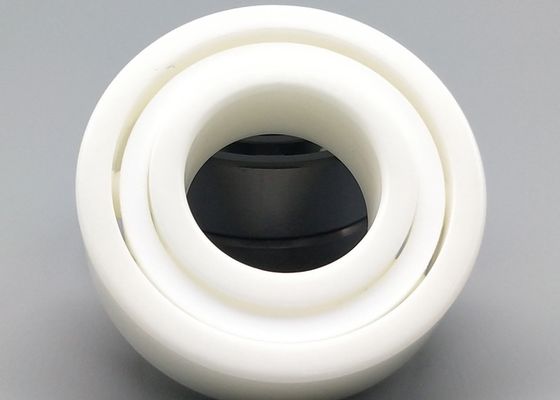

High Precision Ceramic Bearings, CE6009 ZrO2 Full Ceramic Bearings

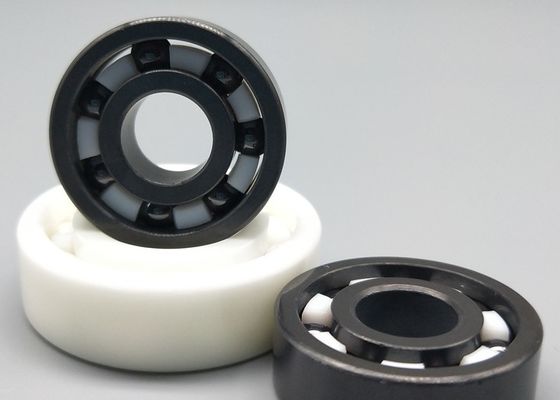

We construct the rolling elements in ceramic bearings using several ceramic materials, including
• Silicon nitride (Si3N4)
• Aluminum oxide (Al2O3)
• Zirconium oxide (ZrO2)
• Silicon carbide (SiC)
The reduced weight of ceramic bearings also contributes to their overall enhanced performance
over steel bearings. Ceramic materials can weigh up to 40% less than comparable steel bearings.
This reduced weight translates to decreased centrifugal loads exerted on the outer race as the
bearing spins. This reduction of forces allows ceramic bearings to operate up to 20–40% faster
than conventional steel bearings while using considerably less energy to maintain their speed.
ZrO2 CERAMIC DEEP GROOVE BALL BEARING CE6009
| Specification of Deep Groove Ball Bearing ZrO2 /Si3N4 /SiC /Al2O3 /POM | ||||||
| Bearing Model | Bore Dia | Outer Dia | Width | Dynamic Radial | Static Radial | Max Speed |
| (d) | (D) | (B) | (Newtons) | (Newtons) | (X1000 RPM) | |
| 602 | 2 mm | 7mm | 2.8mm | 98.4 | 30.9 | 42.6 |
| 603 | 3 mm | 9mm | 3mm | 69 | 45.3 | 40.2 |
| 604 | 4 mm | 12mm | 4mm | 244.2 | 84 | 33.6 |
| 605 | 5 mm | 14mm | 5mm | 339 | 121.8 | 30 |
| 606 | 6 mm | 17mm | 6mm | 577.2 | 203.1 | 27 |
| 607 | 7 mm | 19mm | 6mm | 595.8 | 215.1 | 25.8 |
| 608 | 8mm | 22mm | 7mm | 839.7 | 330.9 | 24 |
| 609 | 9mm | 24mm | 7mm | 855.9 | 346.5 | 22.8 |
| 6000 | 10 mm | 26mm | 8mm | 1365 | 585 | 21.6 |
| 6001 | 12 mm | 28mm | 8mm | 1530 | 720 | 19.2 |
| 6002 | 15 mm | 32mm | 9mm | 1680 | 855 | 16.2 |
| 6003 | 17 mm | 35mm | 10mm | 1800 | 975 | 15 |
| 6004 | 20 mm | 42mm | 12mm | 2820 | 1515 | 12.6 |
| 6005 | 25 mm | 47mm | 12mm | 3030 | 1755 | 10.8 |
| 6006 | 30 mm | 55mm | 13mm | 3960 | 2475 | 9 |
| 6007 | 35 mm | 62mm | 14mm | 4770 | 3090 | 7.8 |
| 6008 | 40 mm | 68mm | 15mm | 5010 | 3450 | 7.2 |
| 6009 | 45 mm | 75mm | 16mm | 6300 | 4530 | 6.6 |
| 6010 | 50 mm | 80mm | 16mm | 6540 | 4980 | 5.94 |
| 6011 | 55 mm | 90mm | 18mm | 8490 | 6360 | 5.4 |
| 6012 | 60 mm | 95mm | 18mm | 8820 | 6960 | 5.1 |
| 6013 | 65 mm | 100mm | 18mm | 9150 | 7560 | 4.8 |
| 6014 | 70 mm | 110mm | 20mm | 11430 | 9270 | 4.26 |
| 6015 | 75 mm | 115mm | 20mm | 11880 | 10050 | 4.02 |
| 6016 | 80 mm | 125mm | 22mm | 14280 | 11940 | 3.78 |
| 6017 | 85 mm | 130mm | 22mm | 14850 | 12930 | 3.6 |
| 6018 | 90 mm | 140mm | 24mm | 17460 | 14910 | 3.36 |
| 6019 | 95 mm | 145mm | 24mm | 18120 | 16170 | 3.18 |
| 6020 | 100 mm | 150mm | 24mm | 18060 | 16260 | 3.18 |
| 6021 | 105 mm | 160mm | 26mm | 21690 | 19740 | 2.88 |
