Product Name: | Chemical Equipment Hybrid Ball Bearings, Ceramic Deep Groove Ball Bearings | Type: | Ball Bearing |
---|---|---|---|
Structure: | Deep Groove Ball Bearing | Rings: | PEEK |
Balls: | ZrO2 | Cage: | PTFE, PEEK, Nylon |
Bore Size: | 3-120 Mm | Precision Rating: | P0 P6 P5 P4 P2, ABEC1 / 3/ 5/ 7/ 9 |
Number Of Row: | Single Row | Seals Type: | Open Or Sealed |
Outside Diameter: | 10 - 180 Mm | Service: | OEM/ODM |
Application: | Semiconductors,Machinery,Equipment,Medical Devices,Skateboard | Lubrication: | No Grease |
Feature: | Long Life High Speed,low Noise,Long Life .durable,High Precision | Package: | Cartons Plastic Tube |
Clearance: | C2 C0 C3 C4 C5 | Size: | 10*30*9mm ~ 25*52*15mm |
Sample: | Available | Delivery: | Air Express, Ocean Shipping |
High Light: | 15mm ball bearings,6202CE hybrid ceramic bearings |

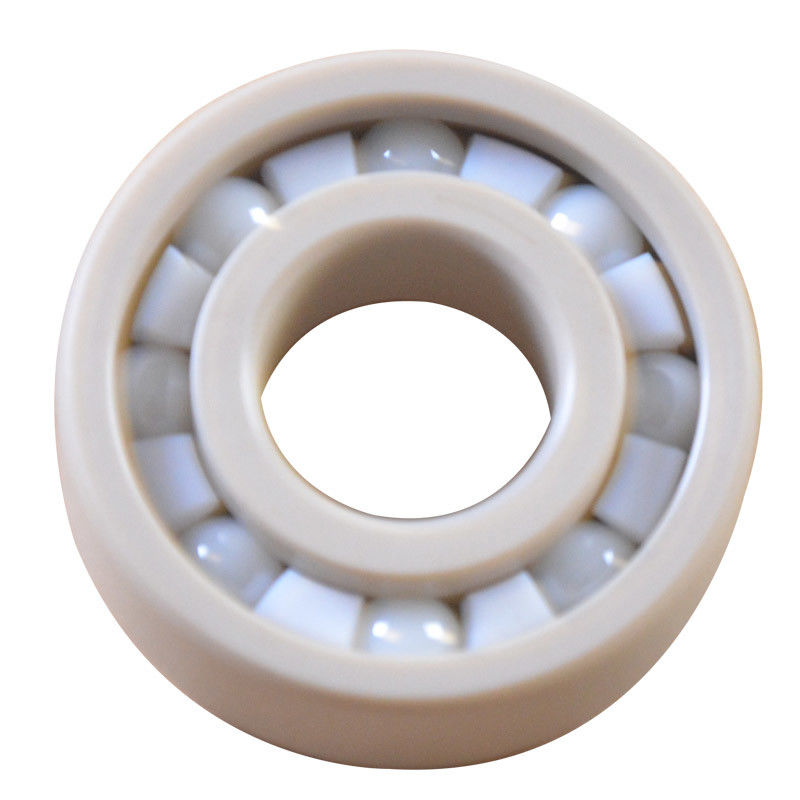

Chemical Equipment Hybrid Ball Bearings, Ceramic Deep Groove Ball Bearings 6202CE PEEK White
Ceramic ball bearing is a kind of ceramic bearing which is the most popular one. Usually, we also call it as ceramic deep groove ball bearing. Inch Sizes Ceramic Ball Bearings – Inch dimensional series with bore sizes ranging from 3/32″ to 1-1/2″ Metric Sizes Ceramic Ball Bearings – Metric dimensional series with bore sizes ranging from 2mm to 480mm.
Dimensions: We are capable of providing inner diameter 2mm miniature ceramic ball bearing, also can provide inner diameter 480mm large dimensions ceramic ball bearing
Structure: Ceramic ball bearing including full complement ball, heavy load, thin section, single row and double row.
Accuracy class: ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, precision ceramic bearing starts from ABEC-5, the higher number, the higher precision. In addition, there are some customers who care ceramic ball grade. Usually ceramic ball grade classified as G3, G5, G10, G16, the smaller the number is, the higher the precision grade is.
Specification of Deep Groove Ball Bearing | ||||||
Model Number
|
Bore Dia | Outer Dia | Width | Dynamic Radial | Static Radial | Max Speed |
(d) | (D) | (B) | ||||
(Newtons) | (Newtons) | (X1000 RPM) | ||||
682 | 2 mm | 5mm | 1.5mm | 43.2 | 12 | 60 |
692 | 2 mm | 6mm | 2.3mm | 84.3 | 23.7 | 54 |
602 | 2 mm | 7mm | 2.8mm | 98.4 | 30.9 | 42.6 |
683 | 3 mm | 7mm | 2mm | 79.2 | 27 | 45 |
693 | 3 mm | 8mm | 3mm | 142.2 | 43.2 | 40.2 |
603 | 3 mm | 9mm | 3mm | 69 | 45.3 | 40.2 |
623 | 3 mm | 10mm | 4mm | 160.8 | 52.5 | 36 |
633 | 3 mm | 13mm | 5mm | 331.8 | 117 | 28.8 |
684 | 4 mm | 9mm | 2.5mm | 163.5 | 54.6 | 37.8 |
694 | 4 mm | 11mm | 4mm | 244.2 | 84 | 33.6 |
604 | 4 mm | 12mm | 4mm | 244.2 | 84 | 33.6 |
624 | 4 mm | 13mm | 5mm | 331.8 | 117 | 28.8 |
634 | 4 mm | 16mm | 5mm | 341.7 | 125.4 | 25.8 |
685 | 5mm | 11mm | 3mm | 182.7 | 67.8 | 31.8 |
695 | 5mm | 13mm | 4mm | 274.8 | 103.8 | 30 |
605 | 5 mm | 14mm | 5mm | 339 | 121.8 | 30 |
625 | 5 mm | 16mm | 5mm | 441 | 162 | 25.8 |
635 | 5 mm | 19mm | 6mm | 595.8 | 215.1 | 24 |
686 | 6 mm | 13mm | 3.5mm | 276 | 106.2 | 30 |
696 | 6 mm | 15mm | 5mm | 341.7 | 125.4 | 27 |
606 | 6 mm | 17mm | 6mm | 577.2 | 203.1 | 27 |
626 | 6 mm | 19mm | 6mm | 595.8 | 215.1 | 24 |
636 | 6mm | 22mm | 7mm | 849.9 | 341.4 | 21.6 |
687 | 7 mm | 14mm | 3.5mm | 299.1 | 123 | 30 |
697 | 7 mm | 17mm | 5mm | 409.2 | 172.5 | 25.8 |
607 | 7 mm | 19mm | 6mm | 595.8 | 215.1 | 25.8 |
627 | 7 mm | 22mm | 7mm | 838.2 | 330.9 | 21.6 |
637 | 7 mm | 26mm | 9mm | 1163.7 | 475.8 | 20.4 |
688 | 8mm | 16mm | 4mm | 319.2 | 142.2 | 25.8 |
698 | 8mm | 19mm | 6mm | 570.6 | 220.2 | 25.8 |
608 | 8mm | 22mm | 7mm | 839.7 | 330.9 | 24 |
628 | 8mm | 24mm | 8mm | 849.9 | 341.4 | 20.4 |
638 | 8 mm | 28mm | 9mm | 1163.7 | 475.8 | 20.4 |
679 | 9mm | 14mm | 3mm | 234.3 | 112.2 | 25.2 |
689 | 9 mm | 17mm | 4mm | 338.4 | 160.2 | 25.8 |
699 | 9mm | 20mm | 6mm | 629.1 | 259.5 | 24 |
609 | 9mm | 24mm | 7mm | 855.9 | 346.5 | 22.8 |
629 | 9 mm | 26mm | 8mm | 1163.7 | 475.8 | 20.4 |
639 | 9mm | 30mm | 10mm | 1188 | 499.2 | 18 |
6700 | 10mm | 15mm | 3mm | 257.1 | 130.5 | 10.2 |
63800 | 10mm | 19mm | 7mm | 516 | 252 | 24 |
6800 | 10mm | 19mm | 5mm | 516 | 252 | 24 |
6900 | 10mm | 22mm | 6mm | 810 | 381 | 22.2 |
6000 | 10 mm | 26mm | 8mm | 1365 | 585 | 21.6 |
6200 | 10 mm | 30mm | 9mm | 1530 | 720 | 17.4 |
6300 | 10 mm | 35mm | 11mm | 2430 | 1035 | 16.2 |
6701 | 12mm | 18mm | 4mm | 278.4 | 159.6 | 9 |
63801 | 12mm | 21mm | 7mm | 576 | 312 | 21.6 |
6801 | 12mm | 21mm | 5mm | 576 | 312 | 21.6 |
6901 | 12mm | 24mm | 6mm | 867 | 438 | 19.8 |
6001 | 12 mm | 28mm | 8mm | 1530 | 720 | 19.2 |
6201 | 12 mm | 32mm | 10mm | 2040 | 915 | 16.2 |
6301 | 12 mm | 37mm | 12mm | 2910 | 1260 | 15 |
6702 | 15mm | 21mm | 4mm | 281.1 | 174.3 | 7.8 |
63802 | 15mm | 24mm | 7mm | 621 | 378 | 18.6 |
6802 | 15mm | 24mm | 5mm | 621 | 378 | 18.6 |
6902 | 15mm | 28mm | 7mm | 1299 | 675 | 17.4 |
6002 | 15 mm | 32mm | 9mm | 1680 | 855 | 16.2 |
6202 | 15 mm | 35mm | 11mm | 2295 | 1125 | 14.4 |
6302 | 15 mm | 42mm | 13mm | 3420 | 1635 | 12 |
6703 | 17mm | 23mm | 4mm | 299.7 | 197.1 | 6.6 |
63803 | 17mm | 26mm | 7mm | 669 | 438 | 17.4 |
6803 | 17mm | 26mm | 5mm | 669 | 438 | 17.4 |
6903 | 17mm | 30mm | 7mm | 1377 | 768 | 15.6 |
6003 | 17 mm | 35mm | 10mm | 1800 | 975 | 15 |
6203 | 17 mm | 40mm | 12mm | 2865 | 1440 | 12.6 |
6303 | 17 mm | 47mm | 14mm | 4080 | 1995 | 10.8 |
6704 | 20mm | 27mm | 4mm | 303 | 216.6 | 6 |
63804 | 20mm | 32mm | 10mm | 1206 | 738 | 15 |
6804 | 20mm | 32mm | 7mm | 1206 | 738 | 15 |
6904 | 20mm | 37mm | 9mm | 1914 | 1104 | 13.2 |
6004 | 20 mm | 42mm | 12mm | 2820 | 1515 | 12.6 |
6204 | 20 mm | 47mm | 14mm | 3840 | 1995 | 10.2 |
6304 | 20 mm | 52mm | 15mm | 4770 | 2355 | 10.2 |
6705 | 25mm | 32mm | 4mm | 330 | 251.4 | 4.8 |
63805 | 25mm | 37mm | 10mm | 1290 | 882 | 12.6 |
6805 | 25mm | 37mm | 7mm | 1290 | 882 | 12.6 |
6905 | 25mm | 42mm | 9mm | 2103 | 1365 | 11.4 |
6005 | 25 mm | 47mm | 12mm | 3030 | 1755 | 10.8 |
6205 | 25 mm | 52mm | 15mm | 4200 | 2355 | 9 |
6305 | 25 mm | 62mm | 17mm | 6180 | 3390 | 7.8 |
6706 | 30mm | 37mm | 4mm | 342 | 284.1 | 4.2 |
63806 | 30mm | 42mm | 10mm | 1361.4 | 1020.6 | 10.8 |
6806 | 30mm | 42mm | 7mm | 1335 | 1032 | 10.8 |
6906 | 30mm | 47mm | 9mm | 2172 | 1503 | 10.2 |
6006 | 30 mm | 55mm | 13mm | 3960 | 2475 | 9 |
6206 | 30 mm | 62mm | 16mm | 5850 | 3390 | 7.8 |
6306 | 30 mm | 72mm | 19mm | 8010 | 4500 | 7.2 |
6707 | 35mm | 44mm | 5mm | 558 | 489 | 3.6 |
6807 | 35mm | 47mm | 7mm | 1422 | 1146 | 9.6 |
6907 | 35mm | 55mm | 10mm | 3270 | 2325 | 8.4 |
6007 | 35 mm | 62mm | 14mm | 4770 | 3090 | 7.8 |
6207 | 35 mm | 72mm | 17mm | 7710 | 4620 | 6.6 |
6307 | 35 mm | 80mm | 21mm | 10020 | 5790 | 6 |
6708 | 40mm | 50mm | 6mm | 753 | 669 | 3 |
6808 | 40mm | 52mm | 7mm | 1479 | 1254 | 8.4 |
6908 | 40mm | 62mm | 12mm | 4110 | 2976 | 7.8 |
6008 | 40 mm | 68mm | 15mm | 5010 | 3450 | 7.2 |
6208 | 40 mm | 80mm | 18mm | 8730 | 5340 | 6 |
6308 | 40 mm | 90mm | 23mm | 12210 | 7200 | 5.4 |
6709 | 45mm | 55mm | 6mm | 771 | 720 | 2.76 |
6809 | 45mm | 58mm | 7mm | 1863 | 1614 | 7.8 |
6909 | 45mm | 68mm | 12mm | 4230 | 3270 | 6.6 |
6009 | 45 mm | 75mm | 16mm | 6300 | 4530 | 6.6 |
6209 | 45 mm | 85mm | 19mm | 9810 | 6090 | 5.52 |
6309 | 45 mm | 100mm | 25mm | 15900 | 9600 | 4.8 |
6710 | 50mm | 62mm | 6mm | 801 | 795 | 2.46 |
6810 | 50mm | 65mm | 7mm | 1851 | 1728 | 6.6 |
6910 | 50mm | 72mm | 12mm | 4350 | 3510 | 6.6 |
6010 | 50 mm | 80mm | 16mm | 6540 | 4980 | 5.94 |
6210 | 50 mm | 90mm | 20mm | 10530 | 6990 | 5.1 |
6310 | 50 mm | 110mm | 27mm | 18600 | 11490 | 4.5 |
6811 | 55mm | 72mm | 9mm | 2640 | 2424 | 6 |
6911 | 55mm | 80mm | 13mm | 4980 | 4230 | 5.76 |
6011 | 55 mm | 90mm | 18mm | 8490 | 6360 | 5.4 |
6211 | 55 mm | 100mm | 21mm | 13020 | 8820 | 4.5 |
6311 | 55 mm | 120mm | 29mm | 21480 | 13500 | 4.02 |
6812 | 60mm | 78mm | 10mm | 3450 | 3180 | 5.64 |
6912 | 60mm | 85mm | 13mm | 6060 | 5190 | 5.34 |
6012 | 60 mm | 95mm | 18mm | 8820 | 6960 | 5.1 |
6212 | 60 mm | 110mm | 22mm | 15720 | 10860 | 4.26 |
6312 | 60 mm | 130mm | 31mm | 24570 | 15660 | 3.78 |
6813 | 65mm | 85mm | 10mm | 3570 | 3450 | 5.16 |
6913 | 65mm | 90mm | 13mm | 5190 | 4800 | 4.98 |
6013 | 65 mm | 100mm | 18mm | 9150 | 7560 | 4.8 |
6213 | 65 mm | 120mm | 23mm | 17160 | 12030 | 3.78 |
6313 | 65 mm | 140mm | 33mm | 27810 | 17970 | 3.6 |
6814 | 70mm | 90mm | 10mm | 3480 | 3540 | 4.86 |
6914 | 70mm | 100mm | 16mm | 7110 | 6330 | 4.56 |
6014 | 70 mm | 110mm | 20mm | 11430 | 9270 | 4.26 |
6214 | 70 mm | 125mm | 24mm | 18660 | 13230 | 3.78 |
6314 | 70 mm | 150mm | 35mm | 31200 | 20460 | 3.18 |
6815 | 75mm | 95mm | 10mm | 3690 | 3840 | 4.56 |
6915 | 75mm | 105mm | 16mm | 7200 | 6780 | 4.26 |
6015 | 75 mm | 115mm | 20mm | 11880 | 10050 | 4.02 |
6215 | 75 mm | 130mm | 25mm | 20220 | 14490 | 3.36 |
6315 | 75 mm | 160mm | 37mm | 33900 | 23160 | 3 |
6816 | 80mm | 100mm | 10mm | 3780 | 3990 | 4.26 |
6916 | 80mm | 110mm | 16mm | 7440 | 7170 | 4.02 |
6016 | 80 mm | 125mm | 22mm | 14280 | 11940 | 3.78 |
6216 | 80 mm | 140mm | 26mm | 21810 | 15900 | 3.18 |
6316 | 80 mm | 170mm | 39mm | 36900 | 26010 | 2.88 |
6817 | 85mm | 110mm | 13mm | 5610 | 5700 | 3.96 |
6917 | 85mm | 120mm | 18mm | 9570 | 8880 | 3.72 |
6017 | 85 mm | 130mm | 22mm | 14850 | 12930 | 3.6 |
6217 | 85 mm | 150mm | 28mm | 25200 | 18570 | 3 |
6317 | 85 mm | 180mm | 41mm | 39900 | 29040 | 2.7 |
6818 | 90mm | 115mm | 13mm | 5490 | 5850 | 3.72 |
6918 | 90mm | 125mm | 18mm | 9720 | 9480 | 3.54 |
6018 | 90 mm | 140mm | 24mm | 17460 | 14910 | 3.36 |
6218 | 90 mm | 160mm | 30mm | 28830 | 21450 | 2.88 |
6318 | 90 mm | 190mm | 43mm | 42900 | 32100 | 2.58 |
6819 | 95mm | 120mm | 13mm | 5640 | 6090 | 3.54 |
6019 | 95 mm | 145mm | 24mm | 18120 | 16170 | 3.18 |
6219 | 95 mm | 170mm | 32mm | 32700 | 24570 | 2.7 |
6319 | 95 mm | 200mm | 45mm | 45900 | 35700 | 3.18 |
6020 | 100 mm | 150mm | 24mm | 18060 | 16260 | 3.18 |
6220 | 100 mm | 180mm | 34mm | 36600 | 27930 | 2.58 |
6320 | 100 mm | 215mm | 47mm | 51900 | 42300 | 2.04 |
6021 | 105 mm | 160mm | 26mm | 21690 | 19740 | 2.88 |
6221 | 105 mm | 190mm | 36mm | 39900 | 31500 | 2.4 |
6321 | 105 mm | 225mm | 49mm | 55200 | 45900 | 1.92 |
