Type: | Plastic Deep Groove Ball Bearings | Bore Size: | 2 - 25 Mm |
---|---|---|---|
Precision Rating: | P0 P6 P5 P4 P2 | Number Of Row: | Single Row |
Material: | POM | Application: | Machinery,Skateboard/roller Skate/finger Skateboard,precise Instrument,navigation |
Outside Diameter: | 2 - 150 Mm | Package: | Cartons |
Lubrication: | Dry/self-lubricating | Cage: | PEFT, Nylon Cage,Stainless Steel Cage |
Service: | OEM Customized Services | Feature: | Long Life /High Speed/Smooth/low Noise |
High Light: | 6001 high temp ball bearings,abec 9 longboard bearings |

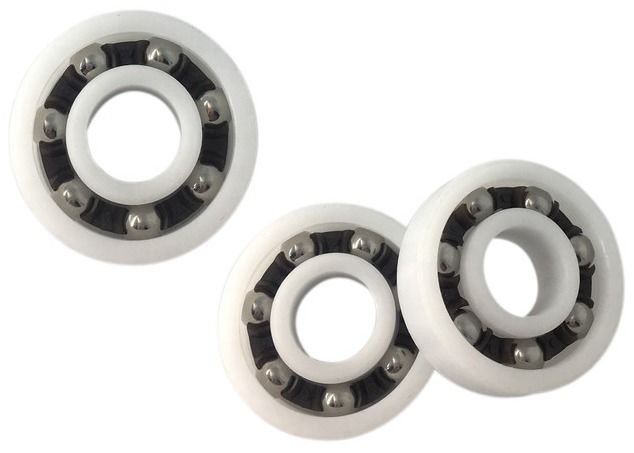

High speed plastic deep groove ball bearing POM 6001 equipment bicycle
POM is a material with good mechanical strength and wear resistance, suitable for making more precise plastic bearings. Its good self-lubricating performance and low coefficient of friction, on the basis of maintaining the traditional advantages of plastic bearings, can be applied to precision and higher speed operation. Among them, POM plastic bearings are the most widely used among all plastic bearings. Generally, the inner and outer balls use POM or PA, and the cage uses glass fiber reinforced nylon 66. The balls are glass balls, stainless steel balls or ceramic balls. This bearing performs well in alkaline environments, but is not suitable for operation in acidic environments.
1. POM and PA material with good mechanical strength and wear resistance, suitable for the production of precision plastic bearings, working temperature from 60 °C to 100 °C, high strength and smooth surface, basically does not appear tension.
2. POM and PA material with good lubrication free and low coefficient of friction can be applied on the basis of maintaining the traditional advantages of plastic bearing precision and higher speed operation.
3. POM plastic bearing is the most widely used of all plastics bearing a kind of general internal and external ball materials with POM or PA, to maintain the frame of glass fiber reinforced nylon 66 (GRPA66-25).
4. POM plastic bearing ball glass ball, stainless steel balls or ceramic balls, such bearing alkaline environment, but not suitable for acidic corrosion.
Specification of Plastic Deep Groove Ball Bearing POM | ||||||
Model Number
|
Bore Dia | Outer Dia | Width | Dynamic Radial | Static Radial | Max Speed |
(d) | (D) | (B) | ||||
(Newtons) | (Newtons) | (X1000 RPM) | ||||
682 | 2 mm | 5mm | 1.5mm | 43.2 | 12 | 60 |
692 | 2 mm | 6mm | 2.3mm | 84.3 | 23.7 | 54 |
602 | 2 mm | 7mm | 2.8mm | 98.4 | 30.9 | 42.6 |
683 | 3 mm | 7mm | 2mm | 79.2 | 27 | 45 |
693 | 3 mm | 8mm | 3mm | 142.2 | 43.2 | 40.2 |
603 | 3 mm | 9mm | 3mm | 69 | 45.3 | 40.2 |
623 | 3 mm | 10mm | 4mm | 160.8 | 52.5 | 36 |
633 | 3 mm | 13mm | 5mm | 331.8 | 117 | 28.8 |
684 | 4 mm | 9mm | 2.5mm | 163.5 | 54.6 | 37.8 |
694 | 4 mm | 11mm | 4mm | 244.2 | 84 | 33.6 |
604 | 4 mm | 12mm | 4mm | 244.2 | 84 | 33.6 |
624 | 4 mm | 13mm | 5mm | 331.8 | 117 | 28.8 |
634 | 4 mm | 16mm | 5mm | 341.7 | 125.4 | 25.8 |
685 | 5mm | 11mm | 3mm | 182.7 | 67.8 | 31.8 |
695 | 5mm | 13mm | 4mm | 274.8 | 103.8 | 30 |
605 | 5 mm | 14mm | 5mm | 339 | 121.8 | 30 |
625 | 5 mm | 16mm | 5mm | 441 | 162 | 25.8 |
635 | 5 mm | 19mm | 6mm | 595.8 | 215.1 | 24 |
686 | 6 mm | 13mm | 3.5mm | 276 | 106.2 | 30 |
696 | 6 mm | 15mm | 5mm | 341.7 | 125.4 | 27 |
606 | 6 mm | 17mm | 6mm | 577.2 | 203.1 | 27 |
626 | 6 mm | 19mm | 6mm | 595.8 | 215.1 | 24 |
636 | 6mm | 22mm | 7mm | 849.9 | 341.4 | 21.6 |
687 | 7 mm | 14mm | 3.5mm | 299.1 | 123 | 30 |
697 | 7 mm | 17mm | 5mm | 409.2 | 172.5 | 25.8 |
607 | 7 mm | 19mm | 6mm | 595.8 | 215.1 | 25.8 |
627 | 7 mm | 22mm | 7mm | 838.2 | 330.9 | 21.6 |
637 | 7 mm | 26mm | 9mm | 1163.7 | 475.8 | 20.4 |
688 | 8mm | 16mm | 4mm | 319.2 | 142.2 | 25.8 |
698 | 8mm | 19mm | 6mm | 570.6 | 220.2 | 25.8 |
608 | 8mm | 22mm | 7mm | 839.7 | 330.9 | 24 |
628 | 8mm | 24mm | 8mm | 849.9 | 341.4 | 20.4 |
638 | 8 mm | 28mm | 9mm | 1163.7 | 475.8 | 20.4 |
679 | 9mm | 14mm | 3mm | 234.3 | 112.2 | 25.2 |
689 | 9 mm | 17mm | 4mm | 338.4 | 160.2 | 25.8 |
699 | 9mm | 20mm | 6mm | 629.1 | 259.5 | 24 |
609 | 9mm | 24mm | 7mm | 855.9 | 346.5 | 22.8 |
629 | 9 mm | 26mm | 8mm | 1163.7 | 475.8 | 20.4 |
639 | 9mm | 30mm | 10mm | 1188 | 499.2 | 18 |
6700 | 10mm | 15mm | 3mm | 257.1 | 130.5 | 10.2 |
63800 | 10mm | 19mm | 7mm | 516 | 252 | 24 |
6800 | 10mm | 19mm | 5mm | 516 | 252 | 24 |
6900 | 10mm | 22mm | 6mm | 810 | 381 | 22.2 |
6000 | 10 mm | 26mm | 8mm | 1365 | 585 | 21.6 |
6200 | 10 mm | 30mm | 9mm | 1530 | 720 | 17.4 |
6300 | 10 mm | 35mm | 11mm | 2430 | 1035 | 16.2 |
6701 | 12mm | 18mm | 4mm | 278.4 | 159.6 | 9 |
63801 | 12mm | 21mm | 7mm | 576 | 312 | 21.6 |
6801 | 12mm | 21mm | 5mm | 576 | 312 | 21.6 |
6901 | 12mm | 24mm | 6mm | 867 | 438 | 19.8 |
6001 | 12 mm | 28mm | 8mm | 1530 | 720 | 19.2 |
6201 | 12 mm | 32mm | 10mm | 2040 | 915 | 16.2 |
6301 | 12 mm | 37mm | 12mm | 2910 | 1260 | 15 |
6702 | 15mm | 21mm | 4mm | 281.1 | 174.3 | 7.8 |
63802 | 15mm | 24mm | 7mm | 621 | 378 | 18.6 |
6802 | 15mm | 24mm | 5mm | 621 | 378 | 18.6 |
6902 | 15mm | 28mm | 7mm | 1299 | 675 | 17.4 |
6002 | 15 mm | 32mm | 9mm | 1680 | 855 | 16.2 |
6202 | 15 mm | 35mm | 11mm | 2295 | 1125 | 14.4 |
6302 | 15 mm | 42mm | 13mm | 3420 | 1635 | 12 |
6703 | 17mm | 23mm | 4mm | 299.7 | 197.1 | 6.6 |
63803 | 17mm | 26mm | 7mm | 669 | 438 | 17.4 |
6803 | 17mm | 26mm | 5mm | 669 | 438 | 17.4 |
6903 | 17mm | 30mm | 7mm | 1377 | 768 | 15.6 |
6003 | 17 mm | 35mm | 10mm | 1800 | 975 | 15 |
6203 | 17 mm | 40mm | 12mm | 2865 | 1440 | 12.6 |
6303 | 17 mm | 47mm | 14mm | 4080 | 1995 | 10.8 |
6704 | 20mm | 27mm | 4mm | 303 | 216.6 | 6 |
63804 | 20mm | 32mm | 10mm | 1206 | 738 | 15 |
6804 | 20mm | 32mm | 7mm | 1206 | 738 | 15 |
6904 | 20mm | 37mm | 9mm | 1914 | 1104 | 13.2 |
6004 | 20 mm | 42mm | 12mm | 2820 | 1515 | 12.6 |
6204 | 20 mm | 47mm | 14mm | 3840 | 1995 | 10.2 |
6304 | 20 mm | 52mm | 15mm | 4770 | 2355 | 10.2 |
6705 | 25mm | 32mm | 4mm | 330 | 251.4 | 4.8 |
63805 | 25mm | 37mm | 10mm | 1290 | 882 | 12.6 |
6805 | 25mm | 37mm | 7mm | 1290 | 882 | 12.6 |
6905 | 25mm | 42mm | 9mm | 2103 | 1365 | 11.4 |
6005 | 25 mm | 47mm | 12mm | 3030 | 1755 | 10.8 |
6205 | 25 mm | 52mm | 15mm | 4200 | 2355 | 9 |
6305 | 25 mm | 62mm | 17mm | 6180 | 3390 | 7.8 |
6706 | 30mm | 37mm | 4mm | 342 | 284.1 | 4.2 |
63806 | 30mm | 42mm | 10mm | 1361.4 | 1020.6 | 10.8 |
6806 | 30mm | 42mm | 7mm | 1335 | 1032 | 10.8 |
6906 | 30mm | 47mm | 9mm | 2172 | 1503 | 10.2 |
6006 | 30 mm | 55mm | 13mm | 3960 | 2475 | 9 |
6206 | 30 mm | 62mm | 16mm | 5850 | 3390 | 7.8 |
6306 | 30 mm | 72mm | 19mm | 8010 | 4500 | 7.2 |
6707 | 35mm | 44mm | 5mm | 558 | 489 | 3.6 |
6807 | 35mm | 47mm | 7mm | 1422 | 1146 | 9.6 |
6907 | 35mm | 55mm | 10mm | 3270 | 2325 | 8.4 |
6007 | 35 mm | 62mm | 14mm | 4770 | 3090 | 7.8 |
6207 | 35 mm | 72mm | 17mm | 7710 | 4620 | 6.6 |
6307 | 35 mm | 80mm | 21mm | 10020 | 5790 | 6 |
6708 | 40mm | 50mm | 6mm | 753 | 669 | 3 |
6808 | 40mm | 52mm | 7mm | 1479 | 1254 | 8.4 |
6908 | 40mm | 62mm | 12mm | 4110 | 2976 | 7.8 |
6008 | 40 mm | 68mm | 15mm | 5010 | 3450 | 7.2 |
6208 | 40 mm | 80mm | 18mm | 8730 | 5340 | 6 |
6308 | 40 mm | 90mm | 23mm | 12210 | 7200 | 5.4 |
6709 | 45mm | 55mm | 6mm | 771 | 720 | 2.76 |
6809 | 45mm | 58mm | 7mm | 1863 | 1614 | 7.8 |
6909 | 45mm | 68mm | 12mm | 4230 | 3270 | 6.6 |
6009 | 45 mm | 75mm | 16mm | 6300 | 4530 | 6.6 |
6209 | 45 mm | 85mm | 19mm | 9810 | 6090 | 5.52 |
6309 | 45 mm | 100mm | 25mm | 15900 | 9600 | 4.8 |
6710 | 50mm | 62mm | 6mm | 801 | 795 | 2.46 |
6810 | 50mm | 65mm | 7mm | 1851 | 1728 | 6.6 |
6910 | 50mm | 72mm | 12mm | 4350 | 3510 | 6.6 |
6010 | 50 mm | 80mm | 16mm | 6540 | 4980 | 5.94 |
6210 | 50 mm | 90mm | 20mm | 10530 | 6990 | 5.1 |
6310 | 50 mm | 110mm | 27mm | 18600 | 11490 | 4.5 |
6811 | 55mm | 72mm | 9mm | 2640 | 2424 | 6 |
6911 | 55mm | 80mm | 13mm | 4980 | 4230 | 5.76 |
6011 | 55 mm | 90mm | 18mm | 8490 | 6360 | 5.4 |
6211 | 55 mm | 100mm | 21mm | 13020 | 8820 | 4.5 |
6311 | 55 mm | 120mm | 29mm | 21480 | 13500 | 4.02 |
6812 | 60mm | 78mm | 10mm | 3450 | 3180 | 5.64 |
6912 | 60mm | 85mm | 13mm | 6060 | 5190 | 5.34 |
6012 | 60 mm | 95mm | 18mm | 8820 | 6960 | 5.1 |
6212 | 60 mm | 110mm | 22mm | 15720 | 10860 | 4.26 |
6312 | 60 mm | 130mm | 31mm | 24570 | 15660 | 3.78 |
6813 | 65mm | 85mm | 10mm | 3570 | 3450 | 5.16 |
6913 | 65mm | 90mm | 13mm | 5190 | 4800 | 4.98 |
6013 | 65 mm | 100mm | 18mm | 9150 | 7560 | 4.8 |
6213 | 65 mm | 120mm | 23mm | 17160 | 12030 | 3.78 |
6313 | 65 mm | 140mm | 33mm | 27810 | 17970 | 3.6 |
6814 | 70mm | 90mm | 10mm | 3480 | 3540 | 4.86 |
6914 | 70mm | 100mm | 16mm | 7110 | 6330 | 4.56 |
6014 | 70 mm | 110mm | 20mm | 11430 | 9270 | 4.26 |
6214 | 70 mm | 125mm | 24mm | 18660 | 13230 | 3.78 |
6314 | 70 mm | 150mm | 35mm | 31200 | 20460 | 3.18 |
6815 | 75mm | 95mm | 10mm | 3690 | 3840 | 4.56 |
6915 | 75mm | 105mm | 16mm | 7200 | 6780 | 4.26 |
6015 | 75 mm | 115mm | 20mm | 11880 | 10050 | 4.02 |
6215 | 75 mm | 130mm | 25mm | 20220 | 14490 | 3.36 |
6315 | 75 mm | 160mm | 37mm | 33900 | 23160 | 3 |
6816 | 80mm | 100mm | 10mm | 3780 | 3990 | 4.26 |
6916 | 80mm | 110mm | 16mm | 7440 | 7170 | 4.02 |
6016 | 80 mm | 125mm | 22mm | 14280 | 11940 | 3.78 |
6216 | 80 mm | 140mm | 26mm | 21810 | 15900 | 3.18 |
6316 | 80 mm | 170mm | 39mm | 36900 | 26010 | 2.88 |
6817 | 85mm | 110mm | 13mm | 5610 | 5700 | 3.96 |
6917 | 85mm | 120mm | 18mm | 9570 | 8880 | 3.72 |
6017 | 85 mm | 130mm | 22mm | 14850 | 12930 | 3.6 |
6217 | 85 mm | 150mm | 28mm | 25200 | 18570 | 3 |
6317 | 85 mm | 180mm | 41mm | 39900 | 29040 | 2.7 |
6818 | 90mm | 115mm | 13mm | 5490 | 5850 | 3.72 |
6918 | 90mm | 125mm | 18mm | 9720 | 9480 | 3.54 |
6018 | 90 mm | 140mm | 24mm | 17460 | 14910 | 3.36 |
6218 | 90 mm | 160mm | 30mm | 28830 | 21450 | 2.88 |
6318 | 90 mm | 190mm | 43mm | 42900 | 32100 | 2.58 |
6819 | 95mm | 120mm | 13mm | 5640 | 6090 | 3.54 |
6019 | 95 mm | 145mm | 24mm | 18120 | 16170 | 3.18 |
6219 | 95 mm | 170mm | 32mm | 32700 | 24570 | 2.7 |
6319 | 95 mm | 200mm | 45mm | 45900 | 35700 | 3.18 |
6020 | 100 mm | 150mm | 24mm | 18060 | 16260 | 3.18 |
6220 | 100 mm | 180mm | 34mm | 36600 | 27930 | 2.58 |
6320 | 100 mm | 215mm | 47mm | 51900 | 42300 | 2.04 |
6021 | 105 mm | 160mm | 26mm | 21690 | 19740 | 2.88 |
6221 | 105 mm | 190mm | 36mm | 39900 | 31500 | 2.4 |
6321 | 105 mm | 225mm | 49mm | 55200 | 45900 | 1.92 |
