Product Details:
Payment & Shipping Terms:
|
Product Name: | Ceramic Angular Contact Ball Bearing | Type: | Ball Bearing |
---|---|---|---|
Structure: | Angular Contact | Ball Material: | ZrO2 |
Cage: | PTFE | Seals Type: | Rubber Seals Or Metal Shields |
Number Of Row: | Single Row | Precision Rating: | P0 P6 P5 P4 P2, ABEC1 ABEC3 ABEC5 ABEC7 |
Clearance: | C1, C2, C3, C4 | Bore Size: | 3 - 41 Mm |
Outside Diameter: | 18 - 280 Mm | Size: | 7002ZZ/2RS |
Color: | White | Lubrication: | Without Grease(Lubrication Dry) |
Feature: | Long Life High Speed,High Temperature | Application: | Machinery,Engine,Finger Spinner/Medical Devices/Skateboard |
Package: | Box, Plastic Bags | Service: | OEM/ODM |
Sample: | Avaliable | Delivery: | Air Express, Ocean Shipping |
High Light: | ZrO2 Ceramic Angular Contact Bearings,7002 angular contact roller bearing |

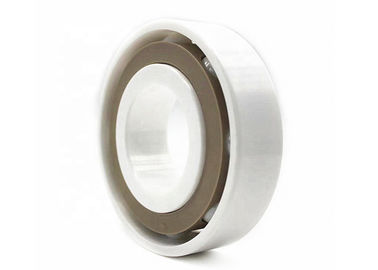

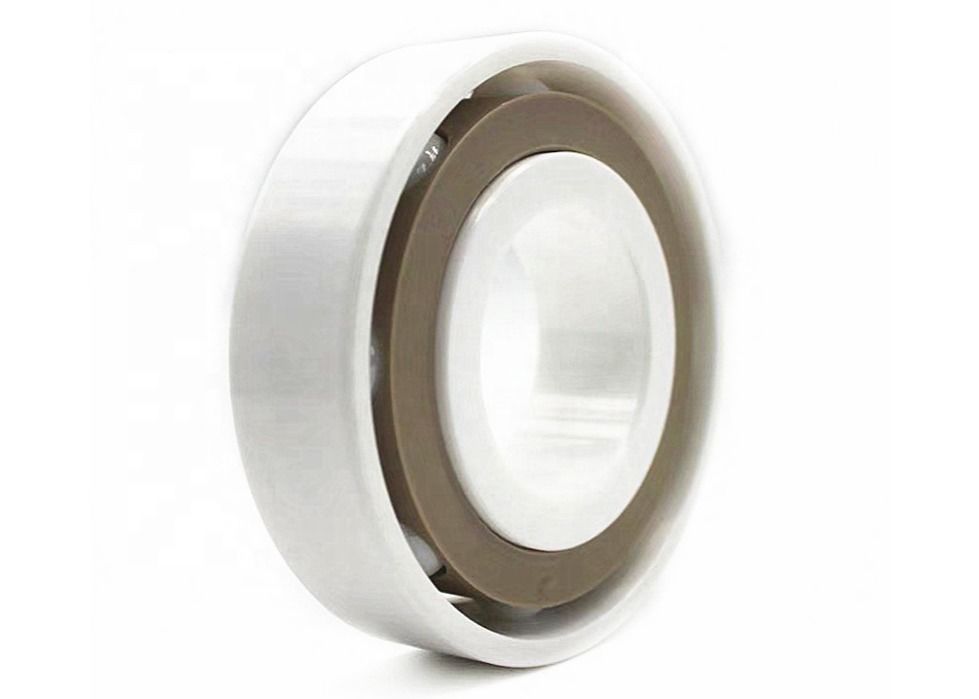

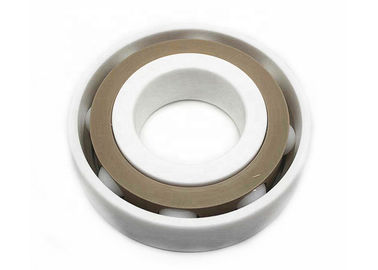

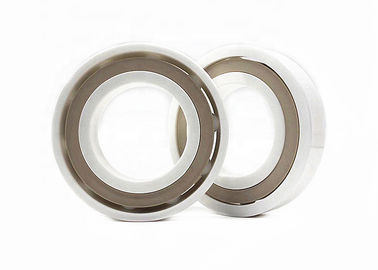

High Precision Angular Contact Ceramic Ball Bearing ZrO2, 700s for machine tool, equipment
Angular contact ball bearing has high limit rotational speed, they can carry radial load and axial load simultaneously, they can also withstand purely radial load. The axial load carrying capacity depends on the magnitude of contact angle and increases with increasing contact angle. Since the rigidity of single-row angular contact ball bearings can be increased by preloading, they are often used in the main spindles of machine tools, for which high running accuracy is required.
Single row angular contact ball bearings can carry axial load acting in one direction only. In many applications, angular contact ball bearings in pairs or multi-arrangement should be used.
Ceramic angular contact ball bearing is divided into full ceramic and hybrid ceramic bearing. Full ceramic angular contact ball bearing’s characters are the high temperature resistance up to 1200℃ degree and working under different extreme severe environment. Having the highest rotating speed is the major specialty of hybrid angular contact bearing. The dental angular contact ceramic ball bearing we developed can reach to 350,000RPM.
Features:
1. Sealed type: Open style, PEEK seals
2. Accuracy grade: ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9
3. Radial play: C0, C2, C3, C4, C5
4. Ceramic bearing type: Angular contact bearing
5. Cage: PTFE, PEEK
6. Bore diameter: 10mm-110mm
7. Main model: 70 series, 72 series, 73 series, 79 series and 5 series etc. angular contact ceramic bearing.
Specification of Angular Contact Ball Bearing | ||||||
Bearing Model | Bore Dia | Outer Dia | Width | Dynamic Radial | Static Radial | Max Speed |
(d) | (D) | (B) | (Newtons) | (Newtons) | (X1000 RPM) | |
7800 71800 | 10 mm | 19mm | 5mm | 1260 | 770 | 180 |
7900 71900 | 10 mm | 22mm | 6mm | 2030 | 1260 | 165 |
7000 | 10 mm | 26mm | 8mm | 2800 | 1680 | 150 |
7200 | 10 mm | 30mm | 9mm | 4480 | 2660 | 127.5 |
7300 | 10 mm | 35 mm | 11 mm | 7070 | 3465 | 51 |
7801 71801 | 12 mm | 21mm | 5mm | 1400 | 980 | 165 |
7901 71901 | 12 mm | 24mm | 6mm | 2240 | 1540 | 142.5 |
7001 | 12 mm | 28mm | 8mm | 3500 | 2100 | 135 |
7201 | 12 mm | 32mm | 10mm | 5040 | 3150 | 120 |
7301 | 12 mm | 37 mm | 12 mm | 7840 | 3675 | 45 |
7802 71802 | 15 mm | 24mm | 5mm | 1540 | 1260 | 135 |
7902 71902 | 15 mm | 28mm | 7mm | 3360 | 2380 | 120 |
7002 | 15 mm | 32mm | 9mm | 3710 | 2310 | 112.5 |
7202 | 15 mm | 35mm | 11mm | 6370 | 4060 | 105 |
7302 | 15 mm | 42 mm | 13 mm | 9450 | 5040 | 39 |
7803 71803 | 17 mm | 26mm | 5mm | 1610 | 1330 | 120 |
7903 71903 | 17 mm | 30mm | 7mm | 3570 | 2660 | 112.5 |
7003 | 17 mm | 35mm | 10mm | 4690 | 3430 | 100.5 |
7203 | 17 mm | 40mm | 12mm | 7910 | 5180 | 90 |
7303 | 17 mm | 47 mm | 14 mm | 11130 | 6055 | 36 |
7804 71804 | 20 mm | 32mm | 7mm | 2730 | 2380 | 100.5 |
7904 71904 | 20 mm | 37mm | 9mm | 5180 | 4060 | 90 |
7004 | 20 mm | 42mm | 12mm | 6720 | 4410 | 84 |
7204 | 20 mm | 47mm | 14mm | 9170 | 6720 | 75 |
7304 | 20 mm | 52 mm | 15 mm | 13090 | 7420 | 31.5 |
7805 71805 | 25 mm | 37mm | 7mm | 2940 | 2870 | 84 |
7905 71905 | 25 mm | 42mm | 9mm | 5320 | 4550 | 75 |
7005 | 25 mm | 47mm | 12mm | 9030 | 6090 | 75 |
7205 | 25 mm | 52mm | 15mm | 11760 | 9170 | 67.5 |
7305 | 25 mm | 62 mm | 17 mm | 18480 | 11060 | 25.5 |
7806 71806 | 30 mm | 42mm | 7mm | 3080 | 3360 | 72 |
7906 71906 | 30 mm | 47mm | 9mm | 5600 | 5320 | 67.5 |
7006 | 30 mm | 55mm | 13mm | 10990 | 8120 | 64.5 |
7206 | 30 mm | 62mm | 16mm | 16380 | 13160 | 57 |
7306 | 30 mm | 72 mm | 19 mm | 23450 | 15610 | 22.5 |
7807 71807 | 35 mm | 47mm | 7mm | 3220 | 3850 | 60 |
7907 71907 | 35 mm | 55mm | 10mm | 7700 | 7630 | 60 |
7007 | 35 mm | 62mm | 14mm | 13510 | 12250 | 51 |
7207 | 35 mm | 72mm | 17mm | 18060 | 16030 | 45 |
7307 | 35 mm | 80 mm | 21 mm | 28000 | 18410 | 19.5 |
7808 71808 | 40 mm | 52mm | 7mm | 3360 | 4340 | 57 |
7908 71908 | 40 mm | 62mm | 12mm | 9800 | 9940 | 51 |
7008 | 40 mm | 68mm | 15mm | 13930 | 13370 | 48 |
7208 | 40 mm | 80mm | 18mm | 23870 | 21630 | 42 |
7308 | 40 mm | 90 mm | 23 mm | 34300 | 23100 | 18 |
7809 71809 | 45 mm | 58mm | 7mm | 3430 | 4690 | 51 |
7909 71909 | 45 mm | 68mm | 12mm | 10290 | 11270 | 45 |
7009 3 | 45 mm | 75mm | 16mm | 18690 | 17710 | 42 |
7209 | 45 mm | 85mm | 19mm | 24850 | 23660 | 39 |
7309 | 45 mm | 100 mm | 25 mm | 44450 | 30800 | 15 |
7810 71810 | 50 mm | 65mm | 7mm | 5180 | 7000 | 45 |
7910 71910 | 50 mm | 72mm | 12mm | 13300 | 14840 | 42 |
7010 | 50 mm | 80mm | 16mm | 19320 | 19250 | 39 |
7210 | 50 mm | 90mm | 20mm | 30310 | 28420 | 36 |
7310 | 50 mm | 110 mm | 27 mm | 51800 | 36400 | 14.1 |
7811 71811 | 55 mm | 72mm | 9mm | 7140 | 9660 | 39 |
7911 71911 | 55 mm | 80mm | 13mm | 16590 | 19180 | 36 |
7011 | 55 mm | 90mm | 18mm | 25690 | 25970 | 33 |
7211 | 55 mm | 100mm | 21mm | 37520 | 35770 | 33 |
7311 | 55 mm | 120 mm | 29 mm | 60200 | 43050 | 12.9 |
7812 71812 | 60 mm | 78mm | 10mm | 9380 | 12600 | 36 |
7912 71912 | 60 mm | 85mm | 13mm | 17360 | 21210 | 33 |
7012 | 60 mm | 95mm | 18mm | 26460 | 28000 | 33 |
7212 | 60 mm | 110mm | 22mm | 39060 | 39340 | 28.5 |
7312 | 60 mm | 130 mm | 31 mm | 68600 | 50050 | 11.85 |
7813 71813 | 65 mm | 85mm | 10mm | 9380 | 13160 | 33 |
7913 71913 | 65 mm | 90mm | 13mm | 17570 | 22330 | 30 |
7013 | 65 mm | 100mm | 18mm | 27230 | 30030 | 30 |
7213 | 65 mm | 120mm | 23mm | 47250 | 48300 | 27 |
7313 | 65 mm | 140 mm | 33 mm | 77700 | 57400 | 10.95 |
7814 71814 | 70 mm | 90mm | 10mm | 9660 | 14210 | 30 |
7914 71914 | 70 mm | 100mm | 16mm | 24150 | 30380 | 28.5 |
7014 | 70 mm | 110mm | 20mm | 34930 | 38850 | 28.5 |
7214 | 70 mm | 125mm | 24mm | 49140 | 52220 | 25.5 |
7314 | 70 mm | 150 mm | 35 mm | 87500 | 65450 | 10.2 |
7815 71815 | 75 mm | 95mm | 10mm | 9940 | 15190 | 28.5 |
7915 71915 | 75 mm | 105mm | 16mm | 17500 | 31920 | 27 |
7015 | 75 mm | 115mm | 20mm | 35910 | 41440 | 27 |
7215 | 75 mm | 130mm | 25mm | 50890 | 56140 | 24 |
7315 | 75 mm | 160 mm | 37 mm | 95200 | 74200 | 9.45 |
7816 71816 | 80 mm | 100mm | 10mm | 10150 | 16170 | 27 |
7916 71916 | 80 mm | 110mm | 16mm | 24850 | 33460 | 25.5 |
7016 | 80 mm | 125mm | 22mm | 43120 | 49280 | 25.5 |
7216 | 80 mm | 140mm | 26mm | 60550 | 67550 | 22.5 |
7316 | 80 mm | 170 mm | 39 mm | 102900 | 83300 | 8.85 |
7817 71817 | 85 mm | 110mm | 13mm | 15050 | 22540 | 25.5 |
7917 71917 | 85 mm | 120mm | 18mm | 32550 | 43330 | 24 |
7017 | 85 mm | 130mm | 22mm | 44310 | 52500 | 24 |
7217 | 85 mm | 150mm | 28mm | 68180 | 75250 | 21 |
7317 | 85 mm | 180 mm | 41 mm | 111300 | 93100 | 8.4 |
7818 71818 | 90 mm | 115mm | 13mm | 15190 | 23450 | 24 |
7918 71918 | 90 mm | 125mm | 18mm | 33040 | 45360 | 22.5 |
7018 | 90 mm | 140mm | 24mm | 46830 | 58800 | 22.5 |
7218 | 90 mm | 160mm | 30mm | 85330 | 91910 | 19.5 |
7318 | 90 mm | 190 mm | 43 mm | 119700 | 102900 | 7.95 |
7819 71819 | 95 mm | 120mm | 13mm | 15330 | 24290 | 22.5 |
7919 71919 | 95 mm | 130mm | 18mm | 33530 | 47460 | 22.5 |
7019 | 95 mm | 145mm | 24mm | 55370 | 68320 | 21 |
7219 | 95 mm | 170mm | 32mm | 90230 | 101570 | 18 |
7319 | 95 mm | 200 mm | 45 mm | 128100 | 113400 | 7.5 |
7820 71820 | 100 mm | 125mm | 13mm | 15750 | 25900 | 21 |
7920 71920 | 100 mm | 140mm | 20mm | 42280 | 59080 | 21 |
7020 | 100 mm | 150mm | 24mm | 56840 | 72310 | 19.5 |
7220 | 100 mm | 180mm | 34mm | 102340 | 116130 | 16.5 |
7320 | 100 mm | 215 mm | 47 mm | 144900 | 135100 | 7.05 |
7821 71821 | 105 mm | 130mm | 13mm | 15890 | 26810 | 21 |
7921 71921 | 105 mm | 145mm | 20mm | 42980 | 61740 | 19.5 |
7021 | 105 mm | 160mm | 26mm | 65730 | 82740 | 18 |
7221 | 105 mm | 190mm | 36mm | 115010 | 131740 | 16.5 |
7321 | 105 mm | 225 mm | 49 mm | 154000 | 147000 | 6.75 |
7822 71822 | 110 mm | 140mm | 16mm | 22260 | 36120 | 19.5 |
7922 71922 | 110 mm | 150mm | 20mm | 43610 | 64330 | 18 |
7022 | 110 mm | 170mm | 28mm | 77280 | 97860 | 16.5 |
7222 | 110 mm | 200mm | 38mm | 119280 | 141750 | 15 |
7322 | 110 mm | 240 mm | 50 mm | 172200 | 172200 | 6.45 |
7824 71824 | 120 mm | 150mm | 16mm | 23170 | 39830 | 16.5 |
7924 71924 | 120 mm | 165mm | 22mm | 51590 | 75320 | 16.5 |
7024 | 120 mm | 180mm | 28mm | 78890 | 104090 | 16.5 |
7224 | 120 mm | 215mm | 40mm | 122780 | 152880 | 13.5 |
7324 | 120 mm | 260 mm | 55 mm | 172200 | 176400 | 5.85 |
7826 71826 | 130 mm | 165mm | 18mm | 27090 | 47320 | 15 |
7926 71926 | 130 mm | 180mm | 24mm | 53410 | 81970 | 15 |
7026 | 130 mm | 200mm | 33mm | 101360 | 133560 | 15 |
7226 | 130 mm | 230mm | 40mm | 140420 | 180810 | 13.5 |
7326 | 130 mm | 280 mm | 58 mm | 191100 | 205100 | 5.4 |
7828 71828 | 140 mm | 175mm | 18mm | 31360 | 55440 | 13.5 |
7928 71928 | 140 mm | 190mm | 24mm | 55230 | 88480 | 13.5 |
7028 | 140 mm | 210mm | 33mm | 104090 | 141820 | 13.5 |
7228 | 140 mm | 250mm | 42mm | 156520 | 214620 | 12 |
7328 | 140 mm | 300 mm | 62 mm | 210000 | 234500 | 4.95 |
7830 71830 | 150 mm | 190mm | 20mm | 35840 | 64400 | 13.5 |
7930 71930 | 150 mm | 210mm | 28mm | 82740 | 122570 | 13.5 |
7030 | 150 mm | 225mm | 35mm | 117880 | 162750 | 13.5 |
7230 | 150 mm | 270mm | 45mm | 168630 | 239050 | 10.5 |
7330 | 150 mm | 320 mm | 65 mm | 231000 | 266000 | 4.65 |
7832 71832 | 160 mm | 200mm | 20mm | 36680 | 68390 | 12 |
7932 71932 | 160 mm | 220mm | 28mm | 86520 | 133840 | 12 |
7032 | 160 mm | 240mm | 38mm | 132370 | 185150 | 12 |
7232 | 160 mm | 290mm | 48mm | 174020 | 256060 | 9 |
7332 | 160 mm | 340 mm | 68 mm | 241500 | 294000 | 4.2 |
7834 71834 | 170 mm | 215mm | 22mm | 46550 | 86380 | 10.5 |
7934 71934 | 170 mm | 230mm | 28mm | 87990 | 140000 | 10.5 |
7034 | 170 mm | 260 mm | 42mm | 143920 | 209510 | 10.5 |
7234 | 170 mm | 310mm | 52mm | 210140 | 321440 | 9 |
7334 | 170 mm | 360 mm | 72 mm | 273000 | 339500 | 4.05 |
7936 71936 | 180 mm | 250mm | 33mm | 111790 | 174370 | 10.5 |
7036 | 180 mm | 280mm | 46mm | 160650 | 246470 | 10.5 |
7236 | 180 mm | 320mm | 52mm | 217840 | 343560 | 9 |
7336 | 180 mm | 380 mm | 75 mm | 287000 | 374500 | 3.75 |
7938 71938 | 190 mm | 260mm | 33mm | 113960 | 182560 | 9 |
7038 | 190 mm | 290mm | 46mm | 164570 | 259560 | 9 |
7238 | 190 mm | 340mm | 55mm | 224910 | 367360 | 7.5 |
7338 | 190 mm | 400 mm | 78 mm | 301000 | 409500 | 3.45 |
7940 71940 | 200 mm | 280mm | 38mm | 138880 | 217980 | 9 |
7040 | 200 mm | 310mm | 51mm | 202370 | 329980 | 9 |
7240 | 200 mm | 360mm | 58mm | 231630 | 391020 | 7.5 |
7340 | 200 mm | 420 mm | 80 mm | 315000 | 423500 | 3.3 |
