Product Details:
Payment & Shipping Terms:
|
| Bore Dia: | 3mm | Outer Dia: | 7mm |
|---|---|---|---|
| Width: | 2mm | Rings: | Si3N4 |
| Balls: | Si3N4 | Cage: | PTFE |
| Product: | 683 Ceramic Bearings | Feature: | High Speed, High Temperature ,Wear Resistance, Corrosion Resistance |
| High Light: | Si3N4 Deep Groove Ceramic Ball Bearings,Bore Dia 3mm Ceramic Ball Bearings |
||

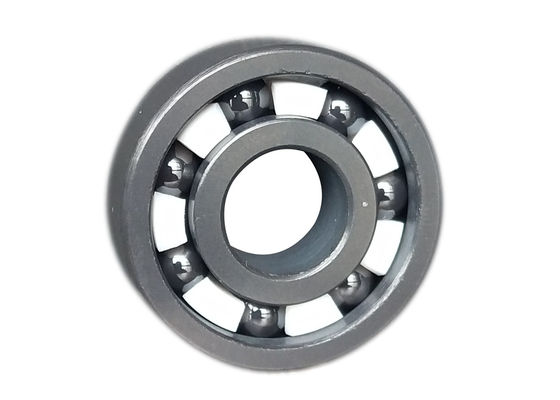

683 Si3N4 Deep Groove Ceramic Ball Bearings High temperature resistant for Machine Tool
High Speed Ceramic Bearings Detail:
Deep Groove Ball Bearings are the most common form of rolling bearings and are used in many types of applications; particularly those where high speeds and low power loss are required. Deep groove ball bearings can handle not only radial forces, but also moderate axial loads in both directions. They are easy to install and can be deployed in a variety of configurations.
Deep Groove Ball Bearings Features:
| Chemical medium | Molecular formula | Contents | Temperature | Anti-corrosion property | |||||||
| AceticAcid | CH3COOH | 80% | Boiling | Excellent | |||||||
| Anhydrides | (CH3CO)2O | 50% ~ 80% | Boiling | Excellent | |||||||
| Water+Sodium chloride | H2O+NaCl | Boiling | Excellent | ||||||||
| carbonic acid | H₂CO₃ | Boiling | Excellent | ||||||||
| copper | CU | 1400℃ | Excellent | ||||||||
| food acid | Boiling | Excellent | |||||||||
| Juice acid | Boiling | Excellent | |||||||||
| hydrochloric acid | HCl | 35% | 25℃ | Good | |||||||
| hydrochloric acid+Ferric oxide | HCl+Fe2O3 | Boiling | Good | ||||||||
| Hydrofluoric Acid | HF | 25℃ | not resistant | ||||||||
| Nitric acid | HNO₃ | 83% | 25℃ | Excellent | |||||||
| Nitric acid+hydrochloric acid | HNO₃+HCl | 80%+20% | Boiling | Excellent | |||||||
| Phosphoric acid | H₃PO₄ | 85% | 25℃ | Excellent | |||||||
| Potassium hydroxide | KOH | 25℃ | Excellent | ||||||||
| Sodium Carbonate+Sulfuric acid | Na2CO3+H₂SO₄ | 18%/20% | 25℃ | Excellent | |||||||
| Sodium hydroxide | NaOH | 50% | Boiling | Excellent | |||||||
| Sulfuric acid | H₂SO₄ | 20% | 25℃ | Excellent | |||||||
| Sulfuric acid | H₂SO₄ | 80% | 50℃ | Good | |||||||
| Aluminum | AL | 100% | 700℃ | Excellent | |||||||
| hydrochloric acid | HCl | 35% | 25℃ | Good | |||||||
| hydrochloric acid+Ferric oxide | HCl+Fe2O3 | Boiling | Good | ||||||||
| Hydrofluoric Acid | HF | 25℃ | not resistant | ||||||||
| Zinc | ZN | 100% | 500℃ | Good | |||||||
Silicon Nitride Ball Bearings Application:
